Typical Concrete Reinforcement Cover And Clearance

About this detail

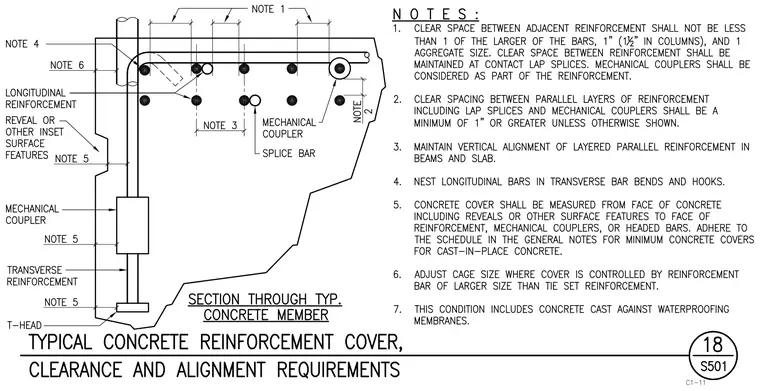

Typical concrete reinforcement cover, clearance, and alignment requirements for cast-in-place concrete members comprise longitudinal reinforcement bars, transverse reinforcement, mechanical couplers, splice bars, and T-head bars embedded within the concrete matrix. Specific notes outline clear spacing rules between adjacent reinforcement, parallel layers, lap splices, and mechanical couplers. Additional provisions govern vertical alignment of layered parallel reinforcement, nesting longitudinal bars in transverse bar bends, measuring concrete cover from reveals or surface features, and adjusting cage sizes for varying bar sizes.
