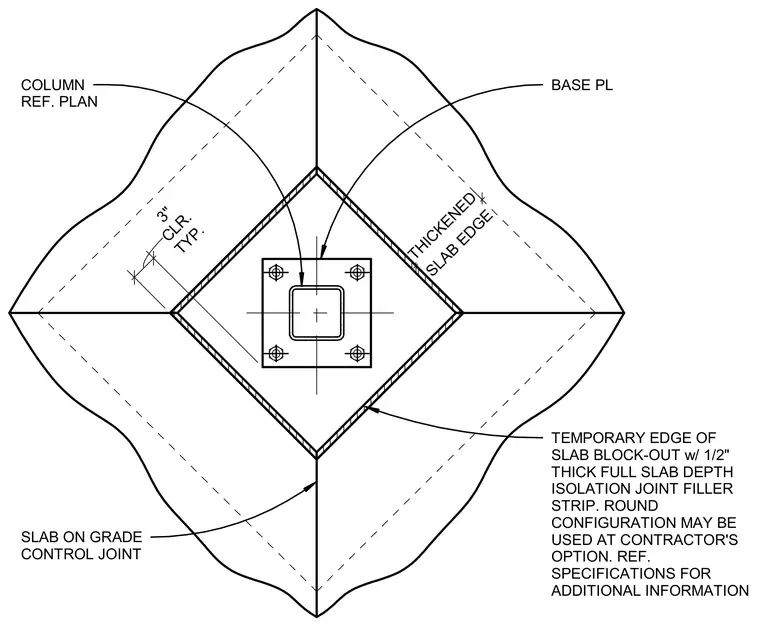

An isolation joint encircles a structural steel column base plate within a slab on grade. The assembly features a thickened slab edge surrounding a temporary edge of slab block-out with a one-half inch thick full slab depth isolation joint filler strip. A three-inch typical clearance is maintained around the base plate. A round configuration may be used at the contractor's option.
TYP. 3" CLR. BASE PL TEMPORARY EDGE OF SLAB BLOCK-OUT w/ 1/2" THICK FULL SLAB DEPTH ISOLATION JOINT FILLER STRIP. ROUND CONFIGURATION MAY BE USED AT CONTRACTOR'S OPTION. REF. SPECIFICATIONS FOR ADDITIONAL INFORMATION COLUMN REF. PLAN SLAB ON GRADE CONTROL JOINT SLAB EDGE THICKENED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
