Unreinforced round openings in a three-inch Type N roof deck are permitted up to five and one-half inches in diameter maximum when located in the high flute. Openings in a one and one-half-inch Type HSB roof deck are permitted up to four and one-half inches in diameter maximum when similarly located in the high flute.

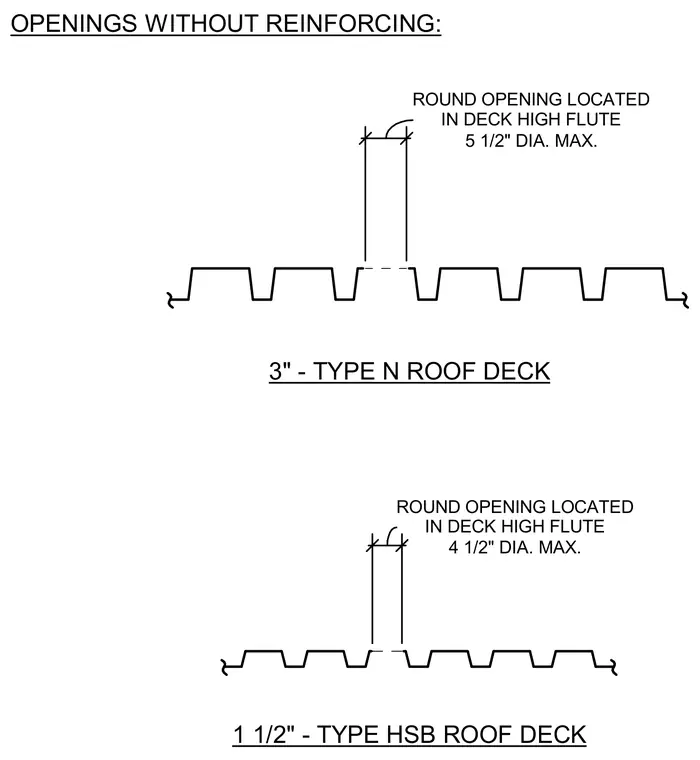

OPENINGS WITHOUT REINFORCING: 3" - TYPE N ROOF DECK 1 1/2" - TYPE HSB ROOF DECK 5 1/2" DIA. MAX. ROUND OPENING LOCATED IN DECK HIGH FLUTE 4 1/2" DIA. MAX. ROUND OPENING LOCATED IN DECK HIGH FLUTE
