Structural · S-BFJWN

Typical Edge Condition at Column and Exterior Slab Edge

Materials

Concrete Reinforced Concrete Steel

Elements

Columns Facades / Cladding Railings / Guards Floors / Slabs Decks Anchors / Embeds Connections / Plates Reinforcing

Connections

Welded Connection Rebar Splice / Development Deck Attachment

About this detail

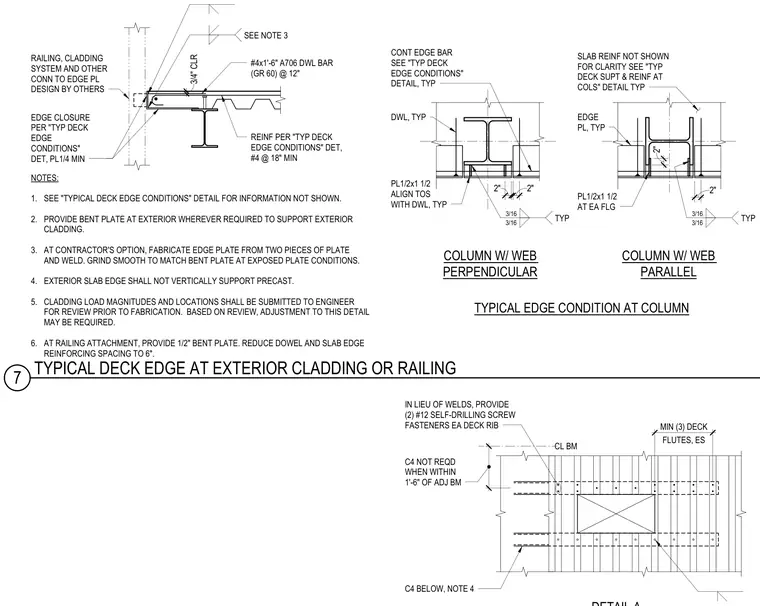

A reinforced concrete slab over metal decking is supported by a structural steel beam and column at the slab edge, with variations shown for columns with webs oriented perpendicular and parallel to the edge. Edge plates and bent plates sized per the drawings are welded to support exterior cladding systems and railing attachments, with dowel bars and continuous edge reinforcing embedded in the slab. Self-drilling screw fasteners are provided at deck ribs in lieu of welds where required, and slab reinforcing is adjusted at railing attachments per the structural notes.
