A bidder-designed stair stringer connects to a centered thickened slab on grade bearing over a reinforced grade beam. Number four hooked dowels spaced at sixteen inches on center with four-inch embeds tie into the grade beam using Hilti Hit Hy200v3 adhesive anchors. The thickened slab features a maximum depth of one foot zero inches below the slab on grade. A separate slab on grade pourback is coordinated per reference drawing 1/S5.1.

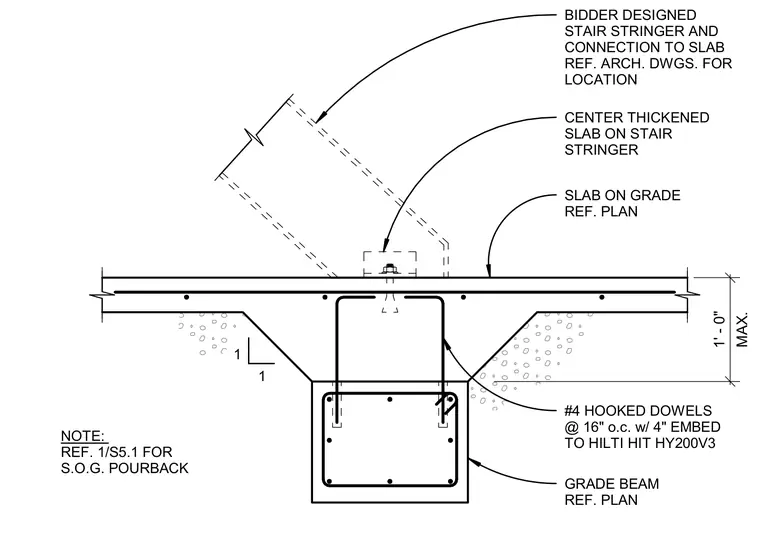

1 1 CENTER THICKENED SLAB ON STAIR STRINGER SLAB ON GRADE REF. PLAN BIDDER DESIGNED STAIR STRINGER AND CONNECTION TO SLAB REF. ARCH. DWGS. FOR LOCATION MAX. 1' - 0" NOTE: REF. 1/S5.1 FOR S.O.G. POURBACK #4 HOOKED DOWELS @ 16" o.c. w/ 4" EMBED TO HILTI HIT HY200V3 GRADE BEAM REF. PLAN
