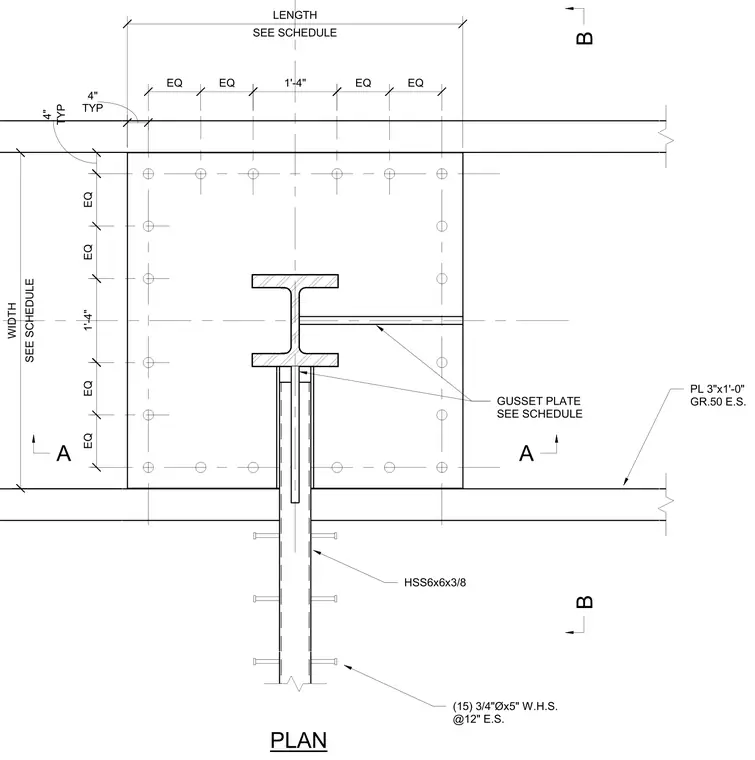

A gusset plate is connected in a plan configuration with dimensions sized per schedule, featuring equal spacing of four inches typically. An HSS6x6x3/8 hollow structural section is anchored using fifteen three-quarter-inch diameter by five-inch welded headed studs spaced at twelve inches each side. A grade 50 plate measuring three inches by one foot is specified on each side. The assembly details intersecting structural steel members and plate connection geometry.
PLAN GUSSET PLATE SEE SCHEDULE SEE SCHEDULE WIDTH SEE SCHEDULE LENGTH EQ EQ EQ EQ TYP 4" TYP 4" EQ EQ EQ EQ 1'-4" 1'-4" HSS6x6x3/8 A B B A (15) 3/4"Øx5" W.H.S. @12" E.S. PL 3"x1'-0" GR.50 E.S.
