Steel beams connect to a tube steel column and to each other using web plates and web stiffeners. The connection accommodates intersecting beams offset more than one foot from each other. Web plates fasten the beam webs to the column face and supporting members with typical bolts and welds. Web stiffeners provide additional reinforcement at the connection zones.

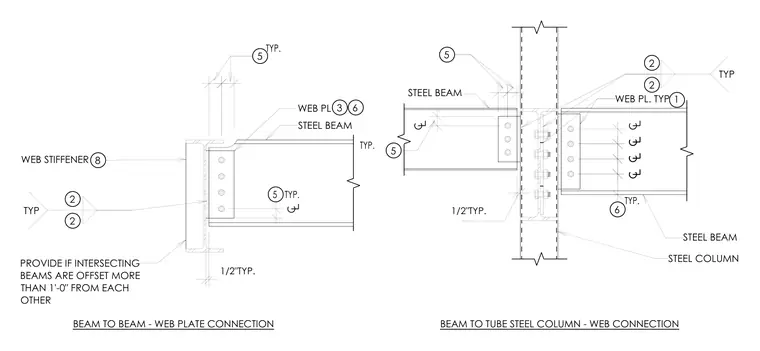

BEAM TO BEAM - WEB PLATE CONNECTION 1/2"TYP. 5 TYP. WEB STIFFENER 8 5 TYP. WEB PL 3 6 STEEL BEAM 5 STEEL BEAM 2 2 1/2"TYP. STEEL COLUMN STEEL BEAM 6 TYP. WEB PL. TYP 1 5 TYP. BEAM TO TUBE STEEL COLUMN - WEB CONNECTION PROVIDE IF INTERSECTING BEAMS ARE OFFSET MORE THAN 1'-0" FROM EACH OTHER TYP 2 2 TYP
