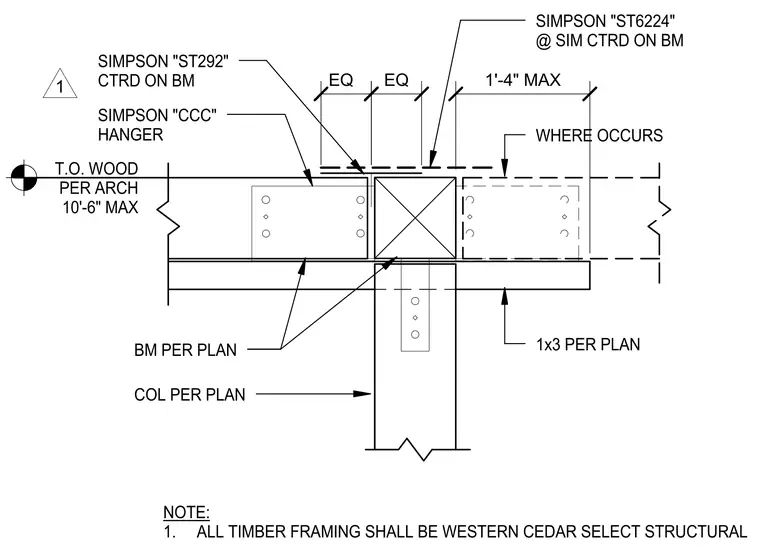

The assembly connects a timber beam to a timber column using a Simpson "CCC" hanger and Simpson straps including "ST292" and "ST6224" centered on the beam. The column and beam sizes are specified per plan, topped with a 1x3 member where required, maintaining a maximum top of wood elevation of 10'-6" per architectural drawings. All timber framing is specified as Western Cedar Select Structural grade.
SIMPSON "CCC" HANGER BM PER PLAN COL PER PLAN 1x3 PER PLAN WHERE OCCURS T.O. WOOD PER ARCH 10'-6" MAX 1'-4" MAX SIMPSON "ST6224" @ SIM CTRD ON BM SIMPSON "ST292" CTRD ON BM EQ EQ NOTE: 1. ALL TIMBER FRAMING SHALL BE WESTERN CEDAR SELECT STRUCTURAL 1
