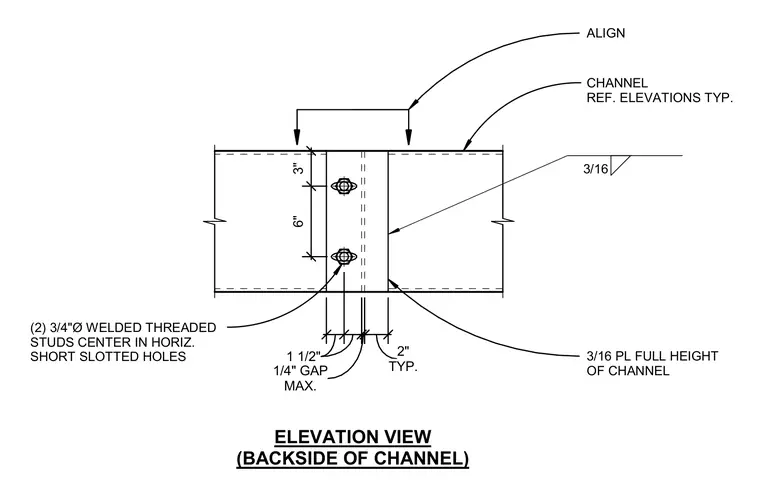

Two steel channels meet at a splice joint separated by a maximum quarter-inch gap. A three-sixteenth-inch plate runs the full height of the channel webs and is attached with three-sixteenth-inch fillet welds. Two three-quarter-inch diameter welded threaded studs are centered vertically within horizontal short slotted holes. Edge distances measure one and a half inches, with a two-inch typical dimension.
CHANNEL REF. ELEVATIONS TYP. 3/16 PL FULL HEIGHT OF CHANNEL 3/16 ALIGN (2) 3/4"Ø WELDED THREADED STUDS CENTER IN HORIZ. SHORT SLOTTED HOLES 6" 3" ELEVATION VIEW (BACKSIDE OF CHANNEL) 1 1/2" 1 1/2" TYP. 2" MAX. 1/4" GAP
