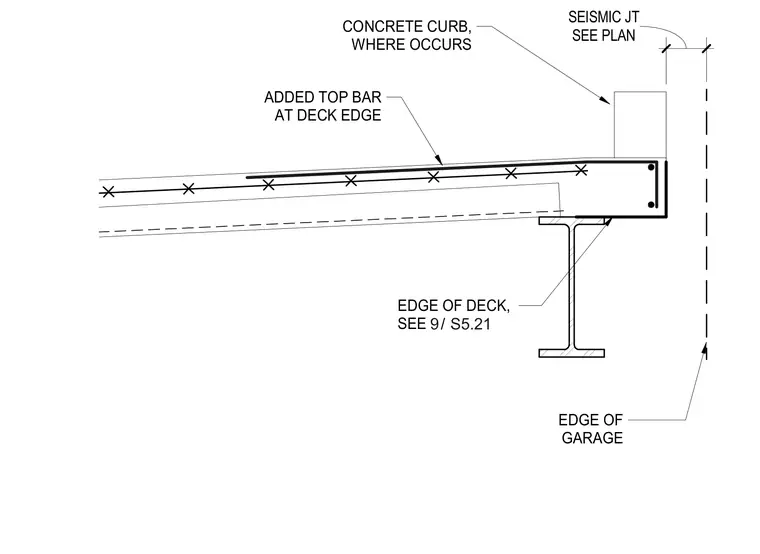

A concrete slab edge bears on a structural steel beam and terminates at a seismic joint aligned with the edge of the garage. An added top bar is placed within the deck edge for extra reinforcement. A concrete curb is provided where indicated. The assembly accommodates a seismic joint sized per plan.
EDGE OF GARAGE SEISMIC JT SEE PLAN EDGE OF DECK, SEE ADDED TOP BAR AT DECK EDGE CONCRETE CURB, WHERE OCCURS / 9 S5.21
