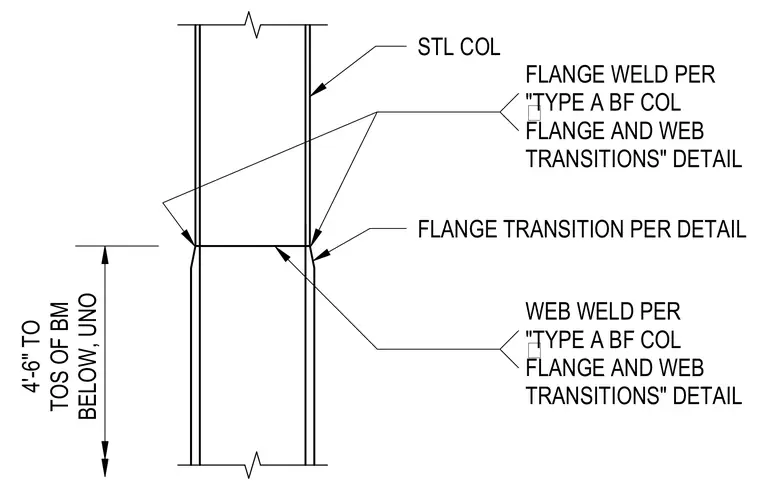

A structural steel column splice features welded flange and web transitions connecting the upper and lower steel column segments. The column flange and web welds follow the specified type A column flange and web transition details unless noted otherwise. A vertical clearance dimension measures four feet six inches to the top of the beam below.
4'-6" TO TOS OF BM BELOW, UNO STL COL FLANGE WELD PER "TYPE A BF COL FLANGE AND WEB TRANSITIONS" DETAIL WEB WELD PER "TYPE A BF COL FLANGE AND WEB TRANSITIONS" DETAIL FLANGE TRANSITION PER DETAIL
