Typical Steel Column Base Plate Elevation and Schedule

Materials

Concrete Steel Masonry / CMU

Elements

Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Embed Plate

About this detail

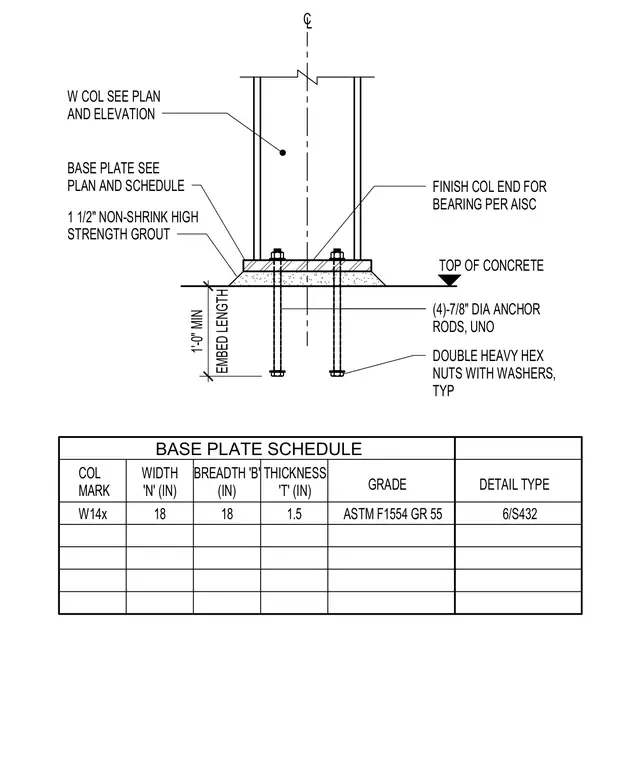

A wide-flange steel column bears on a base plate set over a one-and-a-half-inch layer of non-shrink high-strength grout above the top of concrete. The column end is finished for bearing per AISC specifications. Four seven-eighth-inch diameter anchor rods of ASTM F1554 Grade 55 steel secure the base plate, anchored with double heavy hex nuts and washers. An embed length of one foot minimum is maintained into the concrete foundation. A base plate schedule details column mark dimensions, breadth, thickness, grade, and detail type.
