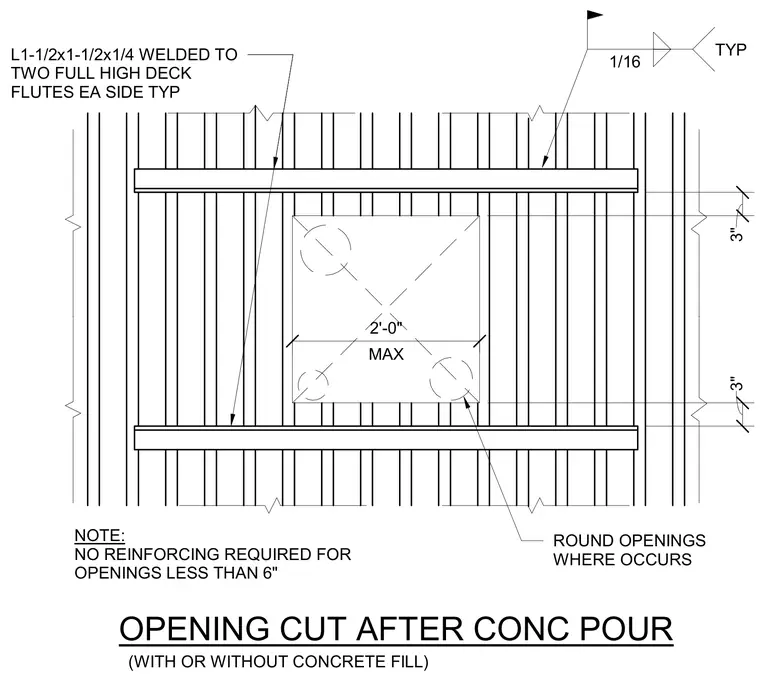

Post-pour slab and deck openings up to two feet maximum are reinforced with steel angles welded to full-height deck flutes on each side. A one-sixteenth inch typical weld connects the L1-1/2x1-1/2x1/4 angles to the two full-height deck flutes typically on each side. Round openings are placed where required, and no reinforcing is required for openings less than six inches.
OPENING CUT AFTER CONC POUR (WITH OR WITHOUT CONCRETE FILL) ROUND OPENINGS WHERE OCCURS L1-1/2x1-1/2x1/4 WELDED TO TWO FULL HIGH DECK FLUTES EA SIDE TYP 1/16 TYP NOTE: NO REINFORCING REQUIRED FOR OPENINGS LESS THAN 6" MAX 2'-0" 3" 3"
