Cold-formed steel studs and joists feature pre-punched web openings with strict dimensional limits for allowable punchout size and edge spacing. Existing penetrations are reinforced using solid steel plates, C-sections, or tracks matching the stud thickness and fastened with screws at one inch on center. Minimum distances are maintained from member ends and bearings to web openings.

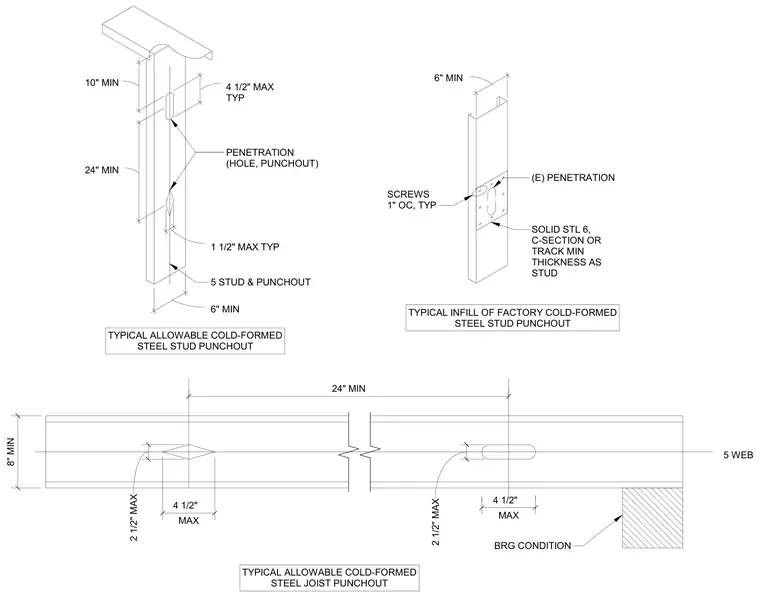

10" MIN 4 1/2" MAX TYP 24" MIN TYPICAL ALLOWABLE COLD-FORMED STEEL JOIST PUNCHOUT BRG CONDITION 1 1/2" MAX TYP 6" MIN 5 STUD & PUNCHOUT TYPICAL ALLOWABLE COLD-FORMED STEEL STUD PUNCHOUT PENETRATION (HOLE, PUNCHOUT) SCREWS 1" OC, TYP 6" MIN (E) PENETRATION SOLID STL 6, C-SECTION OR TRACK MIN THICKNESS AS STUD TYPICAL INFILL OF FACTORY COLD-FORMED STEEL STUD PUNCHOUT 5 WEB 24" MIN MAX 4 1/2" 8" MIN 2 1/2" MAX 2 1/2" MAX MAX 4 1/2"
