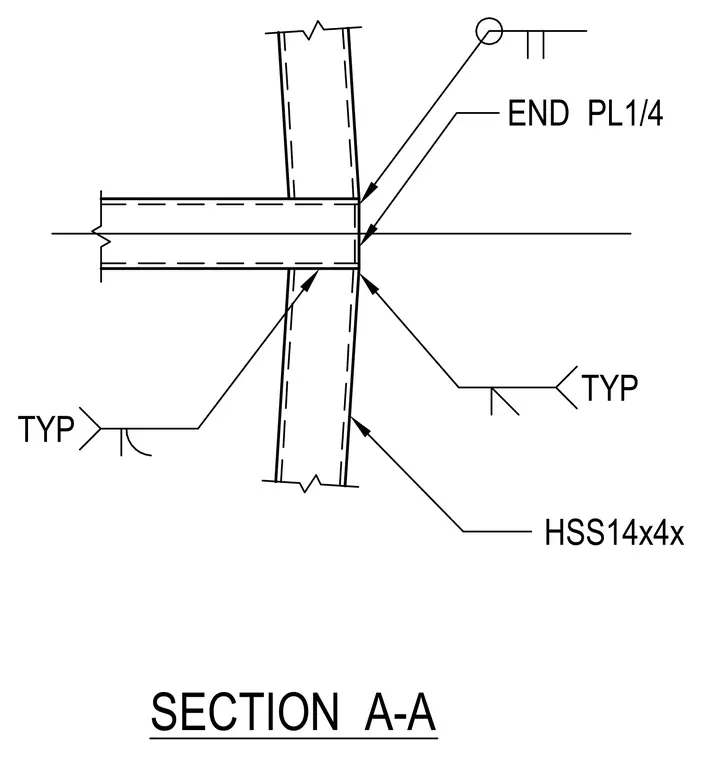

An HSS14x4x hollow structural section framing member connects to a vertical HSS column utilizing a one-quarter-inch end plate welded to the end of the member. Fillet welds are applied typically around the connection interface as specified on the drawing. The detail provides the sectional configuration for intersecting tubular steel members.
