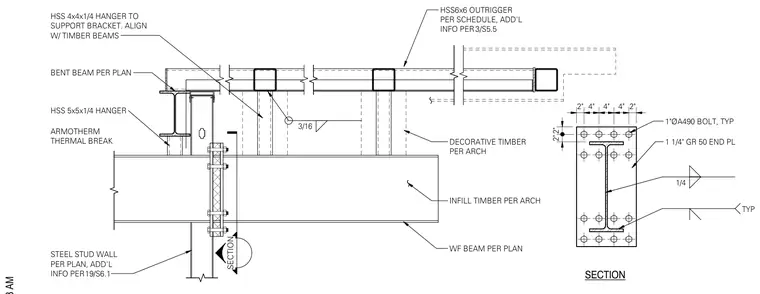

An HSS 6x6 outrigger extends above an infill timber and wide-flange beam per plan, supported by HSS 4x4x1/4 hangers aligned with the timber beams and connected with a 3/16 fillet weld. An HSS 5x5x1/4 hanger sits atop an Armotherm thermal break adjacent to a bent beam per plan and a steel stud wall. A bolted end plate connection utilizes a 1-1/4 inch Grade 50 end plate secured with 1 inch diameter A490 bolts in a typical pattern and welded with a 1/4 inch fillet weld. Decorative timber per architectural specifications infills the assembly below the outriggers.
HSS 5x5x1/4 HANGER HSS6x6 OUTRIGGER PER SCHEDULE, ADD'L INFO PER BENT BEAM PER PLAN STEEL STUD WALL PER PLAN, ADD'L INFO PER 19/S6.1 3/S5.5 INFILL TIMBER PER ARCH DECORATIVE TIMBER PER ARCH WF BEAM PER PLAN HSS 4x4x1/4 HANGER TO SUPPORT BRACKET. ALIGN W/ TIMBER BEAMS 3/16 ARMOTHERM THERMAL BREAK SECTION 2" 4" 4" 4" 2" 2" 2" 1"ØA490 BOLT, TYP 1 1/4" GR 50 END PL 1/4 TYP SECTION
