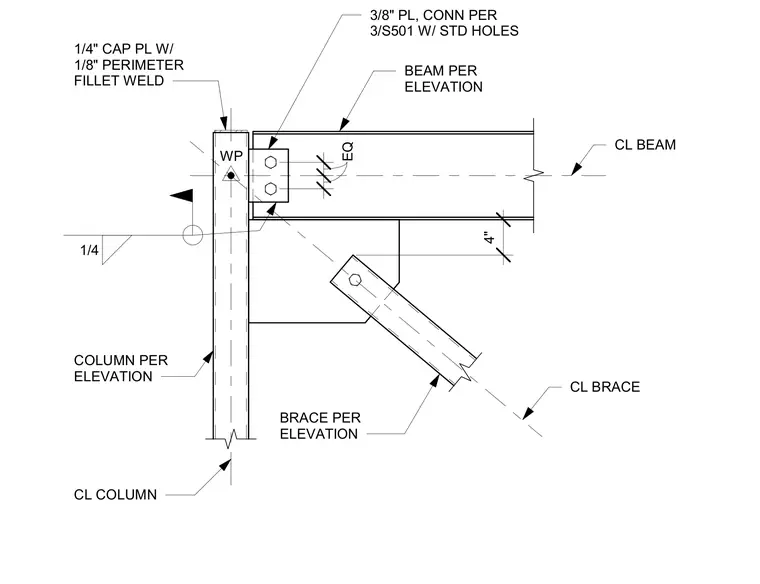

A structural steel braced frame connection frames a beam and brace into an HSS column at a common working point. The hollow structural section column is capped with a one-quarter-inch cap plate secured by a one-eighth-inch perimeter fillet weld. A three-eighth-inch connection plate with standard holes connects the beam, sized per the framing elevation, with equal spacing. The diagonal brace intersects the node at a four-inch offset from the beam centerline.
BEAM PER ELEVATION COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION 4" WP CL BEAM CL COLUMN 1/4" CAP PL W/ 1/8" PERIMETER FILLET WELD 3/8" PL, CONN PER 3/S501 W/ STD HOLES EQ EQ 1/4
