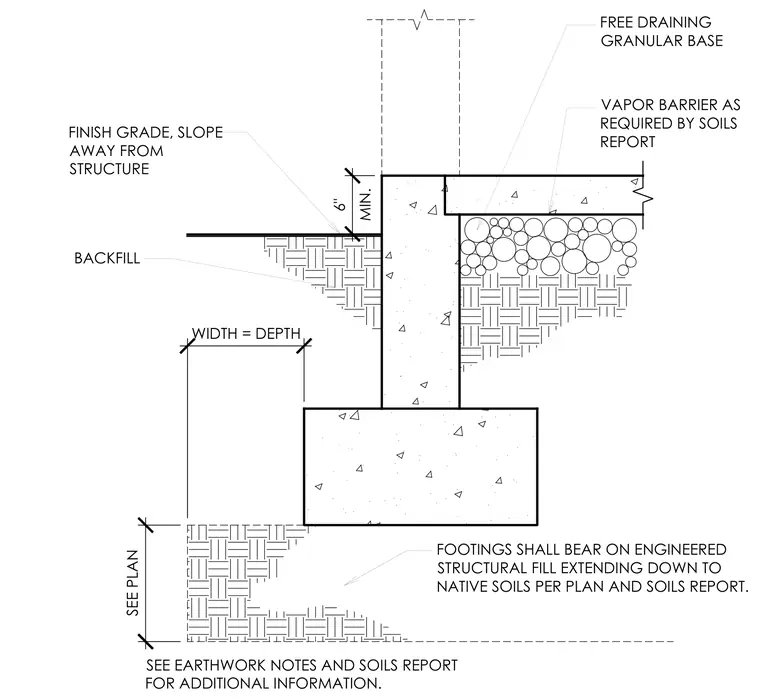

Footings bear on engineered structural fill extending down to native soils per plan and the soils report. A free draining granular base supports the slab-on-grade with a vapor barrier installed as required by the soils report. Finish grade slopes away from the structure with a minimum six-inch vertical drop. Backfill and fill geometry are dimensioned with width equal to depth.
FINISH GRADE, SLOPE AWAY FROM STRUCTURE BACKFILL 6" MIN. VAPOR BARRIER AS REQUIRED BY SOILS REPORT FREE DRAINING GRANULAR BASE WIDTH = DEPTH FOOTINGS SHALL BEAR ON ENGINEERED STRUCTURAL FILL EXTENDING DOWN TO NATIVE SOILS PER PLAN AND SOILS REPORT. SEE PLAN SEE EARTHWORK NOTES AND SOILS REPORT FOR ADDITIONAL INFORMATION. * FIT — I C r h A I A 4 ----- * . d h i N 4 F| A 6- d ■ 'A. ■ ' ■ b <■ . A b A l> id £d dA " £P 1 A' ' id • id b 1 I I, .■A
