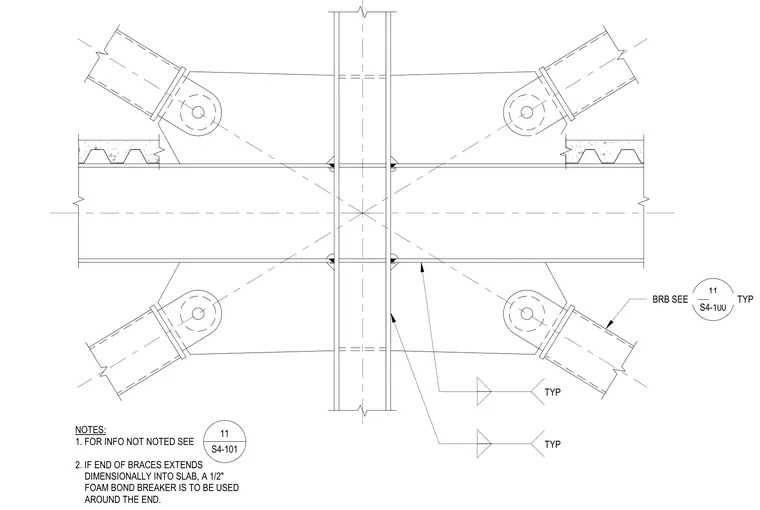

Buckling restrained braces frame into gusset plates welded to a structural steel column flange at the floor level. The beam and column assembly includes welded connections with adjacent metal deck floor slabs. A one-half-inch foam bond breaker is required around the end of the braces if they extend dimensionally into the slab.
11 S4-101 11 S4-100 TYP TYP NOTES: 1. FOR INFO NOT NOTED SEE 2. IF END OF BRACES EXTENDS DIMENSIONALLY INTO SLAB, A 1/2" FOAM BOND BREAKER IS TO BE USED AROUND THE END. BRB SEE TYP
