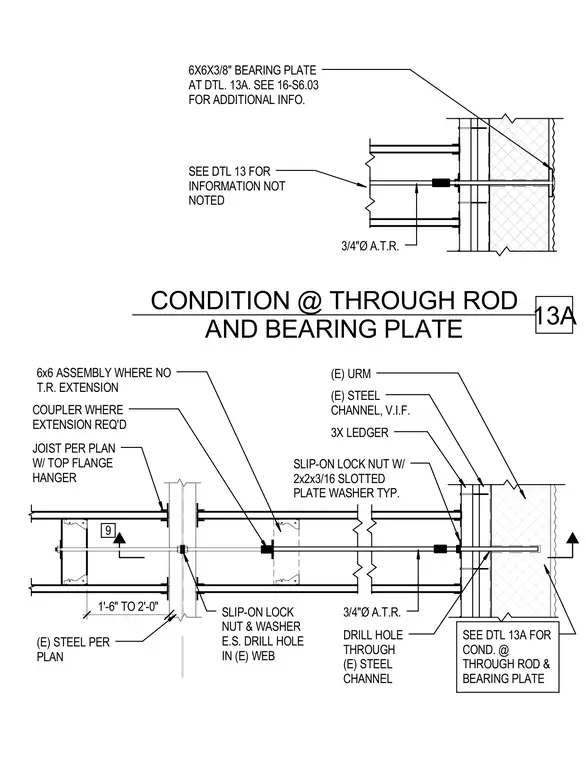

A through-rod anchorage assembly connects an existing unreinforced masonry wall to internal steel framing using a three-quarter-inch threaded rod. A six-by-six-by-three-eighths-inch bearing plate is secured at the exterior wall face with a slip-on lock nut and a two-by-two-by-three-sixteenths-inch slotted plate washer. The threaded rod extends through a drilled hole in the existing steel channel, utilizing a coupler where extensions are required. A joist with a top flange hanger connects to the framing per plan, spaced one foot six inches to two feet zero inches on center.
JOIST PER PLAN W/ TOP FLANGE HANGER SLIP-ON LOCK NUT W/ 2x2x3/16 SLOTTED PLATE WASHER TYP. (E) URM (E) STEEL CHANNEL, V.I.F. COUPLER WHERE EXTENSION REQ'D (E) STEEL PER PLAN 1'-6" TO 2'-0" 6x6 ASSEMBLY WHERE NO T.R. EXTENSION 9 SLIP-ON LOCK NUT & WASHER E.S. DRILL HOLE IN (E) WEB 3/4"Ø A.T.R. 3X LEDGER DRILL HOLE THROUGH (E) STEEL CHANNEL SEE DTL 13A FOR COND. @ THROUGH ROD & BEARING PLATE SEE DTL 13 FOR INFORMATION NOT NOTED 3/4"Ø A.T.R. 6X6X3/8" BEARING PLATE AT DTL. 13A. SEE 16-S6.03 FOR ADDITIONAL INFO. 13A CONDITION @ THROUGH ROD AND BEARING PLATE
