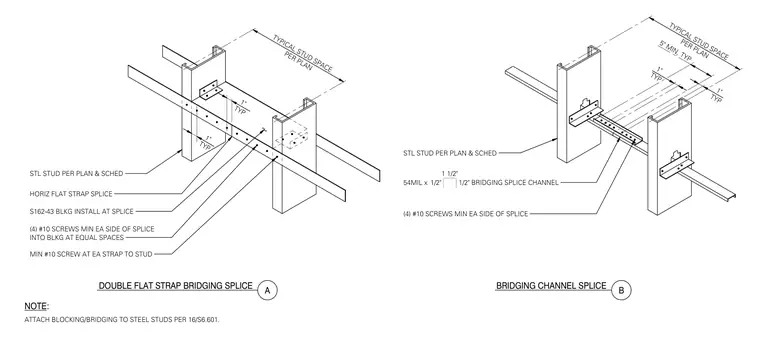

Cold-formed steel studs receive bridging connected with double flat strap splices or bridging channel splices. S162-43 blocking is installed at the splice location and fastened with four number 10 screws minimum on each side into the blocking at equal spaces. A minimum of one number 10 screw secures each strap to the stud. Bridging and blocking attach to the steel studs per sheet 16/S6.601.
TYPICAL STUD SPACE PER PLAN STL STUD PER PLAN & SCHED DOUBLE FLAT STRAP BRIDGING SPLICE HORIZ FLAT STRAP SPLICE S162-43 BLKG INSTALL AT SPLICE (4) #10 SCREWS MIN EA SIDE OF SPLICE INTO BLKG AT EQUAL SPACES MIN #10 SCREW AT EA STRAP TO STUD BRIDGING CHANNEL SPLICE NOTE: ATTACH BLOCKING/BRIDGING TO STEEL STUDS PER 16/S6.601. STL STUD PER PLAN & SCHED 54MIL x BRIDGING SPLICE CHANNEL (4) #10 SCREWS MIN EA SIDE OF SPLICE TYPICAL STUD SPACE PER PLAN 5" MIN, TYP 1" TYP 1" TYP 1" TYP 1" TYP 1 1/2" 1/2" 1/2" A B
