Cold-formed steel wall intersections, corners, and ends are framed using standard channel studs and tracks secured with number eight self-tapping screws spaced at sixteen inches on center typically. Built-up standard columns sized per sheet S1.11 are integrated at the wall intersections. Fasteners connect the framing members through their flanges and webs.

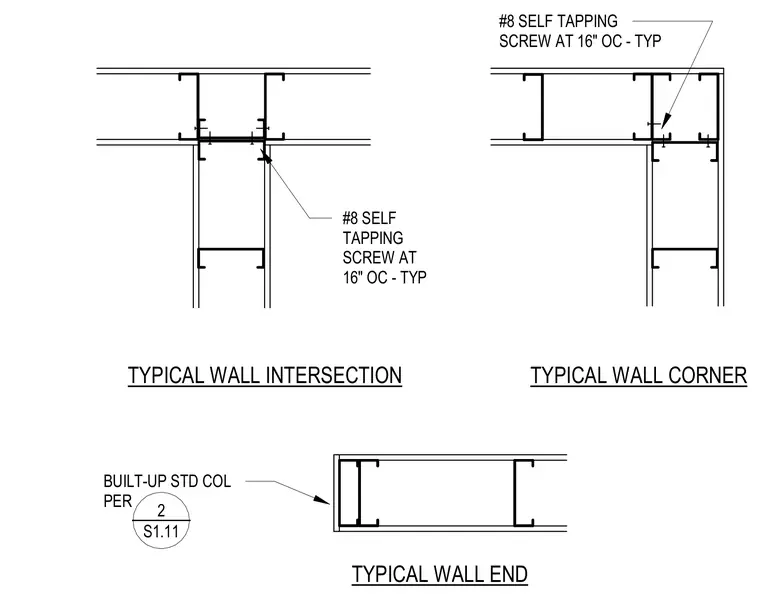

TYPICAL WALL CORNER TYPICAL WALL INTERSECTION TYPICAL WALL END #8 SELF TAPPING SCREW AT 16" OC - TYP #8 SELF TAPPING SCREW AT 16" OC - TYP BUILT-UP STD COL PER _____ 2 S1.11
