Structural · S-BD5XF

Concrete Over Metal

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

About this detail

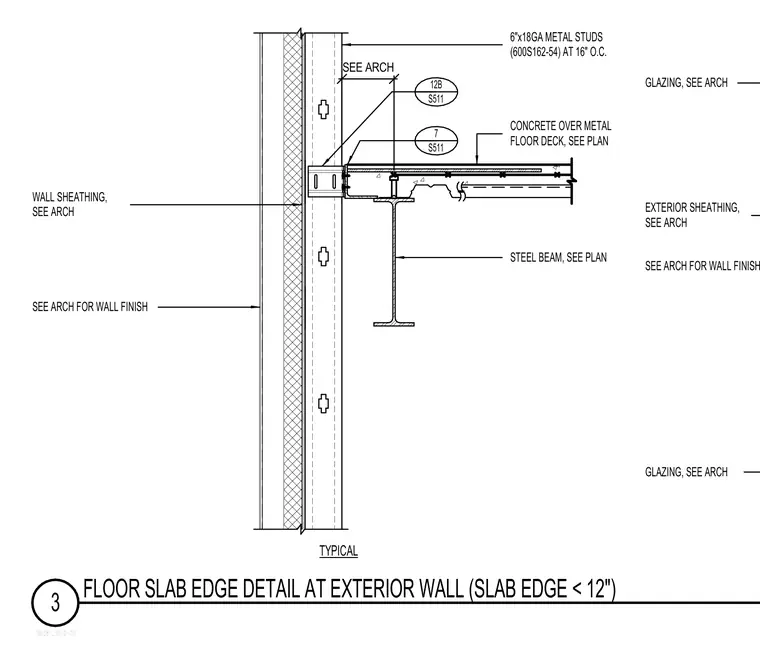

The assembly consists of a concrete fill over a metal floor deck bearing on a structural steel beam, bounded by an exterior cold-formed steel stud wall framing. The exterior wall utilizes six-inch by eighteen-gauge metal studs spaced at sixteen inches on center, with exterior sheathing and wall finishes coordinated per architectural drawings. Glazing and additional wall finishes are similarly integrated per architectural specifications. The floor slab edge condition applies where the slab edge is less than twelve inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
