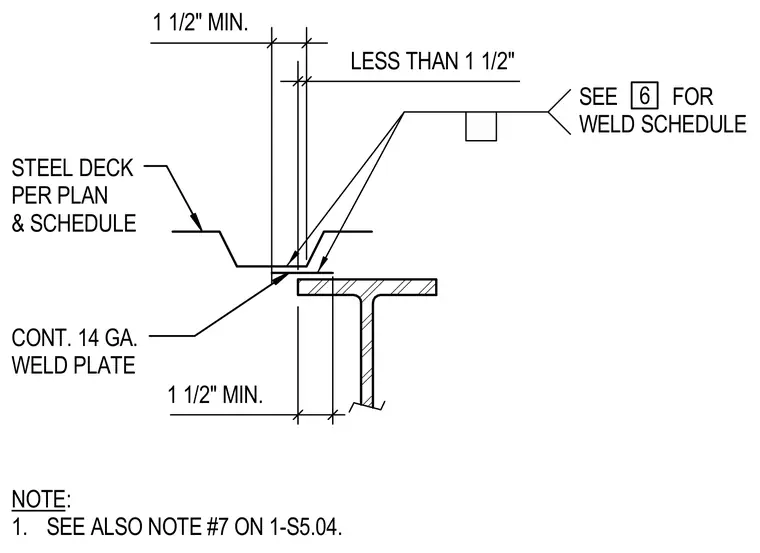

A steel deck bears on a structural steel member with a continuous fourteen gauge weld plate. The assembly maintains a one and one-half inch minimum bearing dimension on the support. Weld requirements refer to the project weld schedule on sheet six. Additional notes reference sheet S5.04 for supplementary connection details.
SEE FOR WELD SCHEDULE LESS THAN 1 1/2" CONT. 14 GA. WELD PLATE NOTE: 1. SEE ALSO NOTE #7 ON 1-S5.04. 1 1/2" MIN. 1 1/2" MIN. STEEL DECK PER PLAN & SCHEDULE 6
