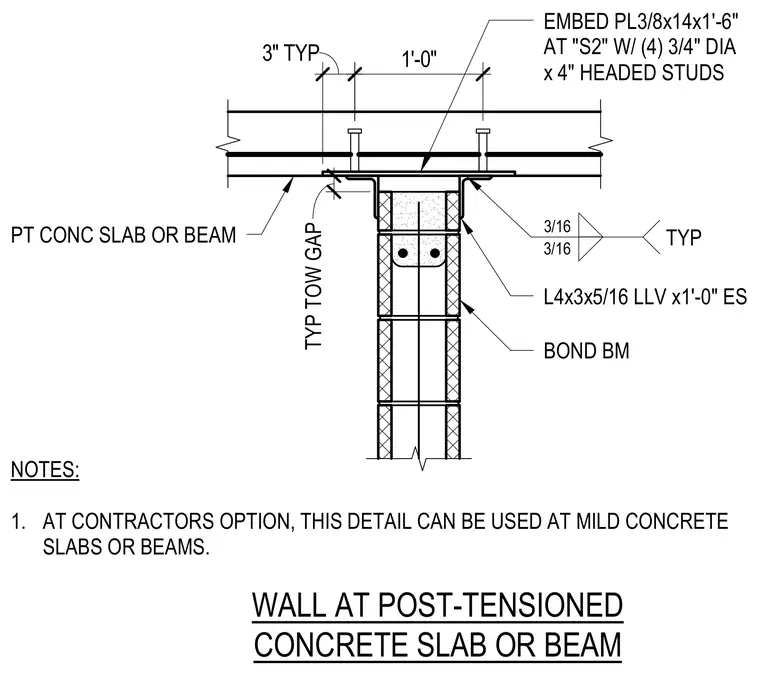

A structural wall terminates below a post-tensioned concrete slab or beam with a typical top-of-wall gap. An embed plate measuring three-eighths by fourteen inches by one foot six inches is anchored into the underside with four three-quarter-inch diameter by four-inch headed studs. Structural angles measuring four by three by five-sixteenths inches with long leg vertical and a length of one foot are welded on each side with three-sixteenth-inch fillet welds. A bond beam supports the upper masonry courses beneath the embedment assembly. At the contractor's option, this detail may also be used at mild concrete slabs or beams.
L4x3x5/16 LLV x1'-0" ES BOND BM EMBED PL3/8x14x1'-6" AT "S2" W/ (4) 3/4" DIA x 4" HEADED STUDS WALL AT POST-TENSIONED CONCRETE SLAB OR BEAM 3" TYP TYP 3/16 3/16 1 1/2" PT CONC SLAB OR BEAM TYP TOW GAP NOTES: 1. AT CONTRACTORS OPTION, THIS DETAIL CAN BE USED AT MILD CONCRETE SLABS OR BEAMS. 1'-0"
