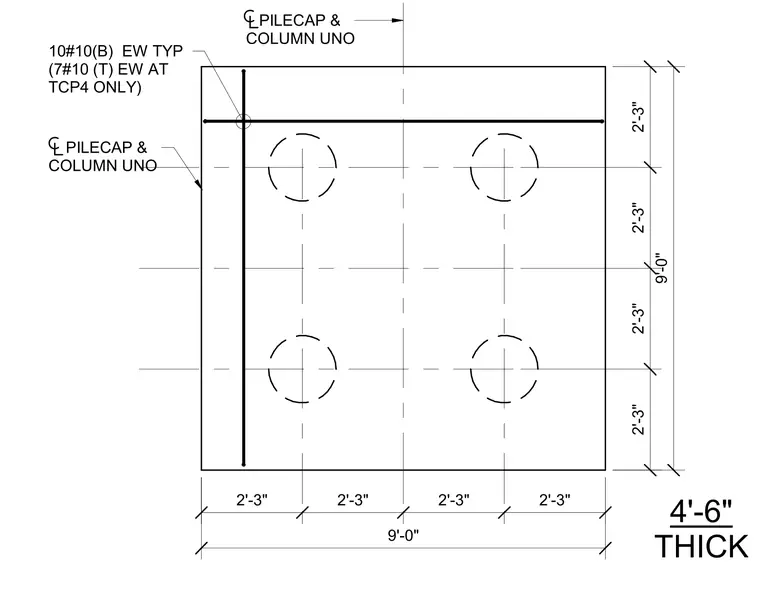

This structural plan detail shows a four-pile concrete pile cap measuring nine feet square by four feet six inches thick. The foundation element is reinforced with ten number ten bars running each way in the bottom layer typically, with seven number ten bars each way in the top layer at pile cap type four specifically. Dashed circles indicate the location of four foundation piles positioned symmetrically beneath the cap. Centerline dimensions of two feet three inches space the piles and rebar grids across the assembly.
4'-6" THICK PILECAP & COLUMN UNO 10#10(B) EW TYP (7#10 (T) EW AT TCP4 ONLY) PILECAP & COLUMN UNO 2'-3" 2'-3" 2'-3" 2'-3" 9'-0" 2'-3" 2'-3" 2'-3" 2'-3" 9'-0"
