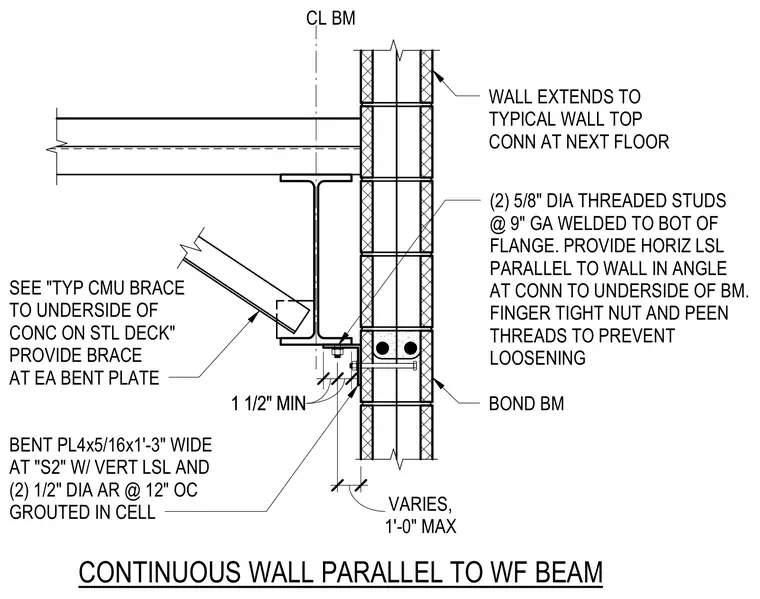

A continuous masonry wall runs parallel to a wide-flange beam supporting a concrete slab on a steel deck. The masonry wall includes a bond beam and connects to the floor structure using bent plates measuring 4 inches by 5/16 inches by 1 foot 3 inches wide, equipped with vertical laminated strand lumber and two 1/2-inch diameter anchor rods spaced at 12 inches on center grouted in the cell. Two 5/8-inch diameter threaded studs at 9-inch gauge are welded to the bottom flange of the steel beam, featuring a horizontal laminated strand lumber parallel to the wall in an angle at the connection to the underside of the beam, with finger-tight nuts and peened threads to prevent loosening. A diagonal brace is provided at each bent plate, with reference made to a typical CMU brace to the underside of the concrete on steel deck.
CL BM 2 1/2" BOND BM SEE "TYP CMU BRACE TO UNDERSIDE OF CONC ON STL DECK" PROVIDE BRACE AT EA BENT PLATE BENT PL4x5/16x1'-3" WIDE AT "S2" W/ VERT LSL AND (2) 1/2" DIA AR @ 12" OC GROUTED IN CELL CONTINUOUS WALL PARALLEL TO WF BEAM VARIES, 1'-0" MAX WALL EXTENDS TO TYPICAL WALL TOP CONN AT NEXT FLOOR 1 1/2" MIN 1 1/2" MIN (2) 5/8" DIA THREADED STUDS @ 9" GA WELDED TO BOT OF FLANGE. PROVIDE HORIZ LSL PARALLEL TO WALL IN ANGLE AT CONN TO UNDERSIDE OF BM. FINGER TIGHT NUT AND PEEN THREADS TO PREVENT LOOSENING
