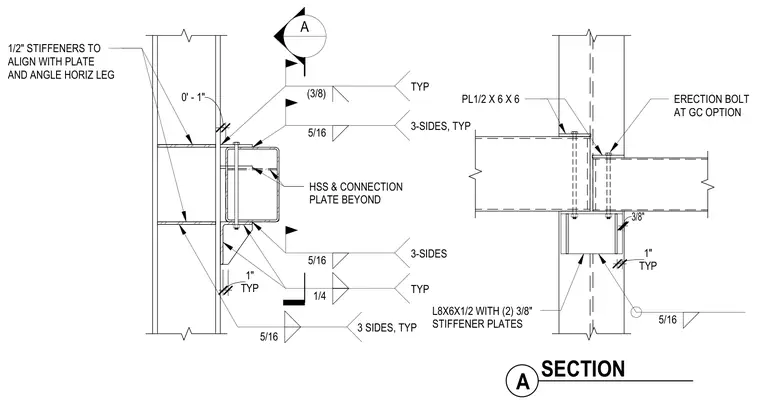

An HSS girt passes a structural steel column with differing sizes using a connection plate and an L8x6x1/2 angle fitted with two three-eighths inch stiffener plates. A half-inch plate measuring six by six inches ties into the assembly alongside erection bolts provided at the general contractor's option. Five-sixteenths inch and one-quarter inch fillet welds secure the connection on three sides typical. Half-inch stiffeners align with the plate and the horizontal leg of the angle.
A PL1/2 X 6 X 6 A SECTION 5/16 3-SIDES 1/4 TYP L8X6X1/2 WITH (2) 3/8" STIFFENER PLATES TYP 1" (3/8) TYP 5/16 3-SIDES, TYP ERECTION BOLT AT GC OPTION TYP 1" 0' - 1" 1/2" STIFFENERS TO ALIGN WITH PLATE AND ANGLE HORIZ LEG 5/16 3 SIDES, TYP 5/16 3/8" HSS & CONNECTION PLATE BEYOND
