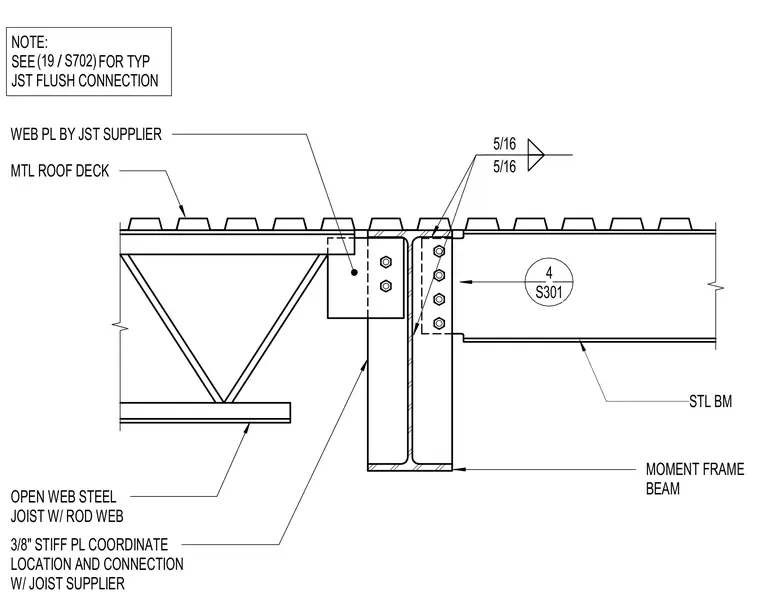

An open web steel joist with rod web connects to a web plate provided by the joist supplier, bearing beneath a metal roof deck. A moment frame beam supports the assembly, featuring a three-eighths inch stiffener plate coordinated with the joist supplier for location and connection. A steel beam connects to the web of the moment frame beam using bolted connections and five-sixteenths inch fillet welds. A general note directs the builder to sheet 19 on S702 for typical joist flush connections.
MTL ROOF DECK WEB PL BY JST SUPPLIER OPEN WEB STEEL JOIST W/ ROD WEB MOMENT FRAME BEAM 3/8" STIFF PL COORDINATE LOCATION AND CONNECTION W/ JOIST SUPPLIER STL BM S301 4 5/16 5/16 NOTE: SEE FOR TYP JST FLUSH CONNECTION / (19 S702)
