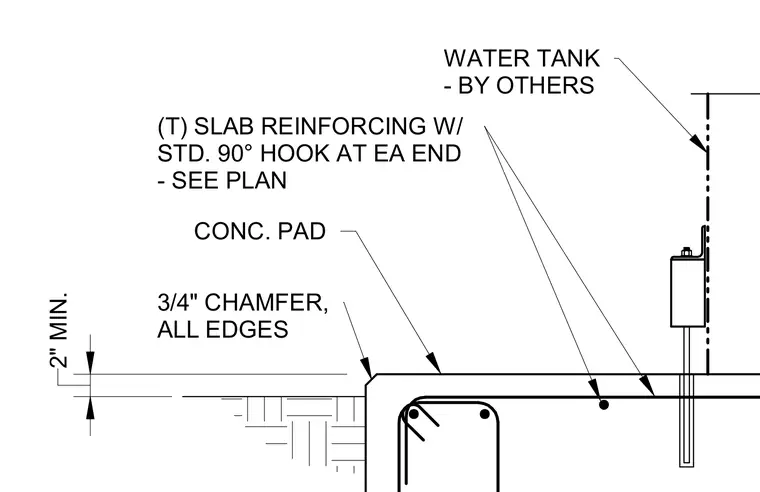

A concrete pad supports a water tank provided by others, anchored via embedded hardware with a two-inch minimum clearance. The concrete slab features internal reinforcing with standard ninety-degree hooks at each end, sized per plan. All edges of the concrete pad are finished with a three-quarter-inch chamfer.
2" MIN. 3/4" CHAMFER, ALL EDGES CONC. PAD WATER TANK - BY OTHERS (T) SLAB REINFORCING W/ STD. 90° HOOK AT EA END - SEE PLAN
