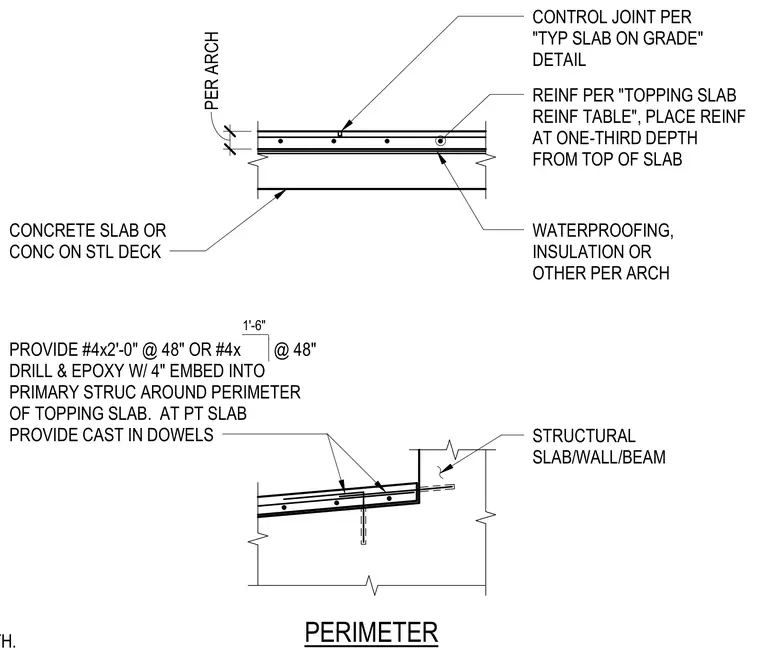

This structural detail shows a concrete topping slab bearing on a concrete slab or concrete on steel deck with a perimeter structural slab, wall, or beam. Number 4 reinforcing dowels at two feet long spaced at forty-eight inches on center are drilled and epoxied with four inches of embedment into the primary structure around the perimeter of the topping slab, while post-tensioned slabs utilize cast-in dowels. The topping slab is placed after the slab below reaches design strength and includes reinforcement placed at one-third of the depth from the top of the slab. Waterproofing, insulation, and control joints are provided per architectural specifications.
PROVIDE #4x2'-0" @ 48" OR #4x @ 48" DRILL & EPOXY W/ 4" EMBED INTO PRIMARY STRUC AROUND PERIMETER OF TOPPING SLAB. AT PT SLAB PROVIDE CAST IN DOWELS TOPPING SLAB TO BE PLACED AFTER SLAB BELOW HAS REACHED DESIGN STRENGTH. CONCRETE SLAB OR CONC ON STL DECK WATERPROOFING, INSULATION OR OTHER PER ARCH REINF PER "TOPPING SLAB REINF TABLE", PLACE REINF AT ONE-THIRD DEPTH FROM TOP OF SLAB CONTROL JOINT PER "TYP SLAB ON GRADE" DETAIL PERIMETER STRUCTURAL SLAB/WALL/BEAM 1'-6" 4" PER ARCH
