Slab Corner Reinforcing and Edge Bar Details

Materials

Elements

Beams Walls Floors / Slabs Decks Expansion / Control Joints Waterproofing / Flashing Roof / Floor Openings

About this detail

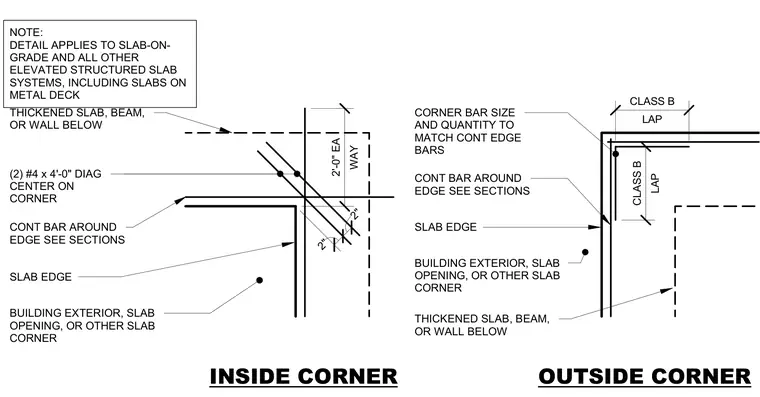

Reinforcing layout requirements for inside and outside slab corners at building exteriors, slab openings, and other slab corners. Continuous edge bars wrap around the slab edge matching sizes specified in section details, supplemented by two number four diagonal bars measuring four feet long centered on the corner and spaced two inches apart in each way. Corner bars match the size and quantity of continuous edge bars and lap with a Class B splice. The detail applies to slabs-on-grade and all other elevated structured slab systems, including slabs on metal deck, supported by a thickened slab, beam, or wall below.
