Structural · S-BC7RY

Typical Top Condition Intermediate Condition Bottom Condition Bearing Plate

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

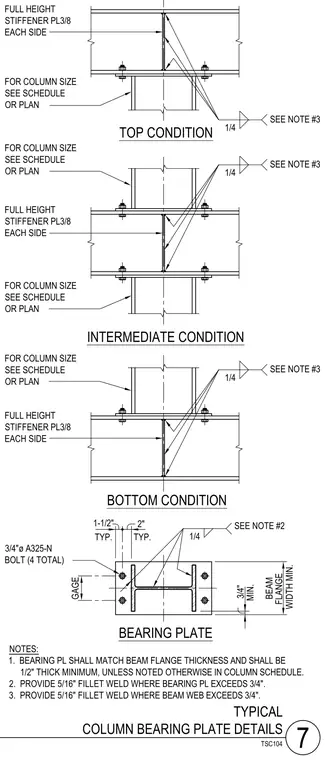

These structural steel details illustrate top, intermediate, and bottom conditions for column bearing plates intersecting beams. The assembly incorporates full height three-eighths-inch stiffener plates on each side of the beam web, connected with quarter-inch fillet welds and five-sixteenths-inch welds where plate or web thickness exceeds three-quarters of an inch. The bearing plate matches the beam flange thickness with a one-half-inch minimum, secured by four total three-quarter-inch-diameter A325-N bolts with typical edge distances of one and one-half inches and two inches. Column sizes are sized per plan or schedule. General notes specify minimum plate thicknesses and weld requirements for heavier sections.
