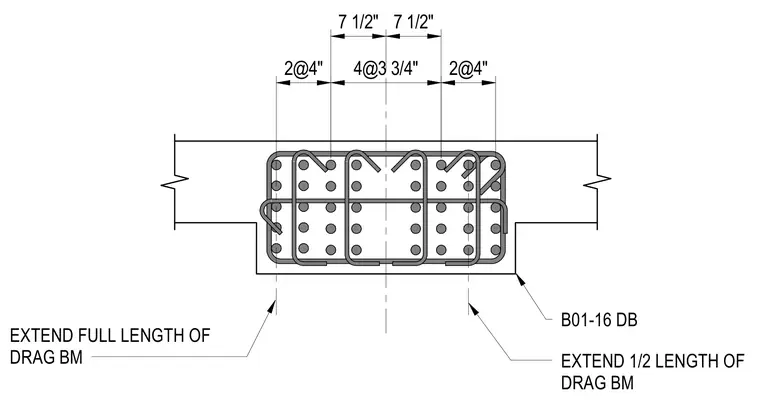

A reinforced concrete drag beam cross-section details longitudinal reinforcing bars enclosed by transverse stirrups with alternating spacings of two at four inches, four at three and three-quarters inches, and two at four inches. Designated bar B01-16 DB features specific extension notes requiring full length extension for certain bars and half length extension for others.
2@4" 4@3 3/4" 2@4" B01-16 DB EXTEND 1/2 LENGTH OF DRAG BM EXTEND FULL LENGTH OF DRAG BM 7 1/2" 7 1/2"
