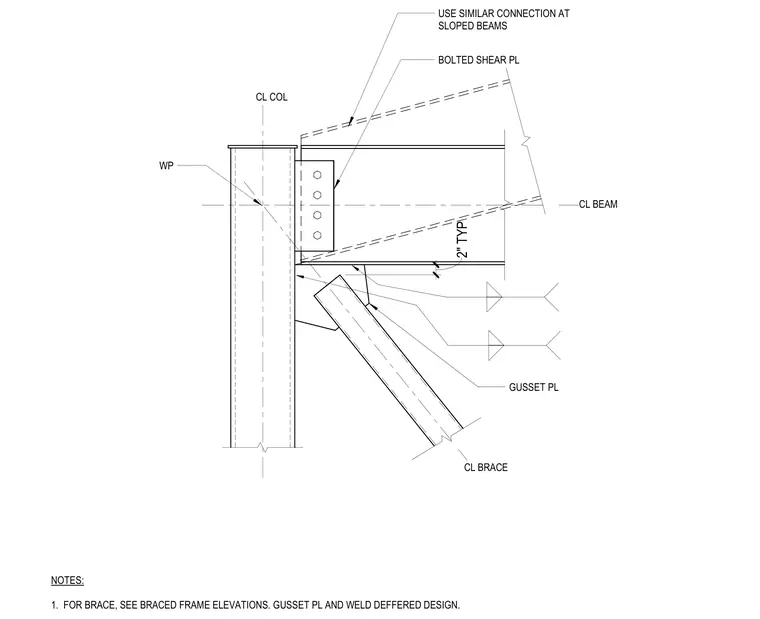

A structural steel beam frames into a column using a bolted shear plate with a two-inch typical clearance. A diagonal brace connects to the column and beam intersection through a gusset plate designed with deferred welding requirements. The work point of the connection aligns with the centerlines of the column, beam, and brace. A similar connection is indicated for use at sloped beams.
NOTES: 1. FOR BRACE, SEE BRACED FRAME ELEVATIONS. GUSSET PL AND WELD DEFFERED DESIGN. CL COL CL BEAM WP GUSSET PL CL BRACE USE SIMILAR CONNECTION AT SLOPED BEAMS BOLTED SHEAR PL 2" TYP
