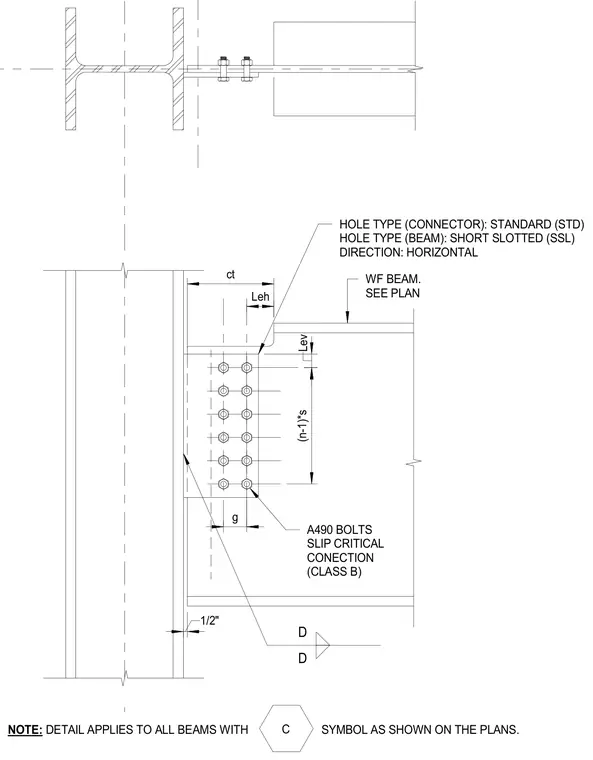

A wide flange beam connects to a supporting column using a welded-to-column, bolted-to-beam shear tab with standard holes in the connector and horizontal short-slotted holes in the beam web. The connection utilizes A490 bolts configured as a Class B slip-critical connection. Fillet welds secure the shear tab to the column flange with a specified clearance. The detail applies to all beams indicated with the designated symbol on the structural plans.
Lev (n-1)*s ct Leh WF BEAM. SEE PLAN HOLE TYPE (CONNECTOR): STANDARD (STD) HOLE TYPE (BEAM): SHORT SLOTTED (SSL) DIRECTION: HORIZONTAL A490 BOLTS SLIP CRITICAL CONECTION (CLASS B) D D NOTE: DETAIL APPLIES TO ALL BEAMS WITH SYMBOL AS SHOWN ON THE PLANS. C 1/2" g
