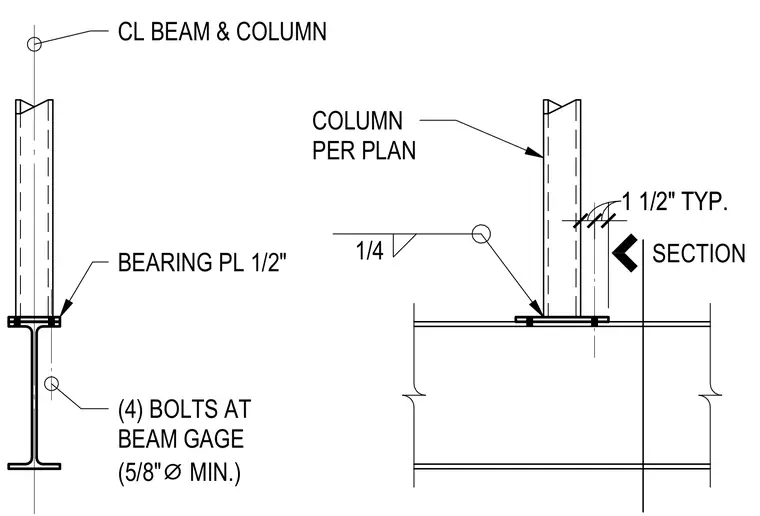

An HSS column bears directly on a wide flange steel beam through a half-inch thick bearing plate. The connection is secured with four bolts installed at the beam gauge, using minimum five-eighth-inch diameter fasteners. A quarter-inch fillet weld fastens the assembly components together with typical one-and-a-half-inch clearances aligned to the column and beam centerline.
1/4 COLUMN PER PLAN (4) BOLTS AT BEAM GAGE (5/8" ⌀ MIN.) BEARING PL 1/2" SECTION CL BEAM & COLUMN 1 1/2" TYP. 1 1/2" TYP.
