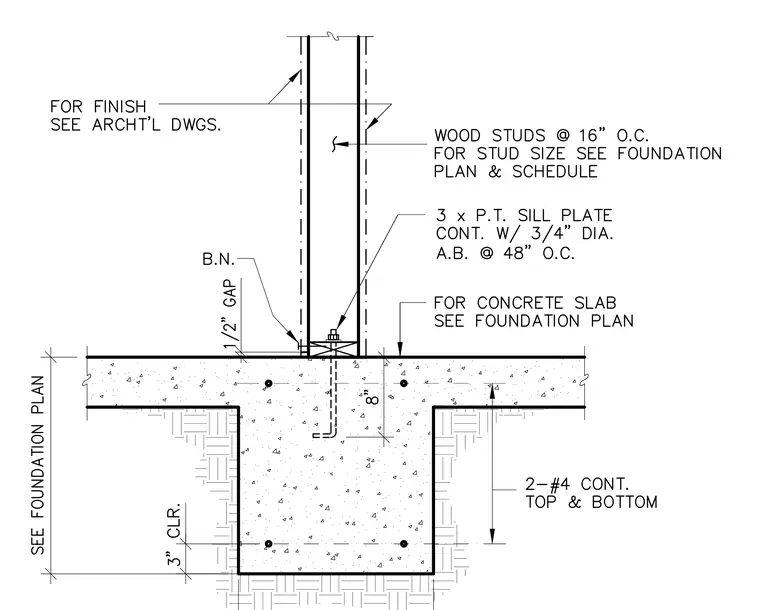

Wood studs space at sixteen inches on center bear on a continuous three-inch preservative-treated sill plate secured by three-quarter-inch diameter anchor bolts spaced at forty-eight inches on center. The sill plate rests above a concrete slab and foundation wall containing two number four continuous reinforcing bars at top and bottom, with three inches of clear cover.
