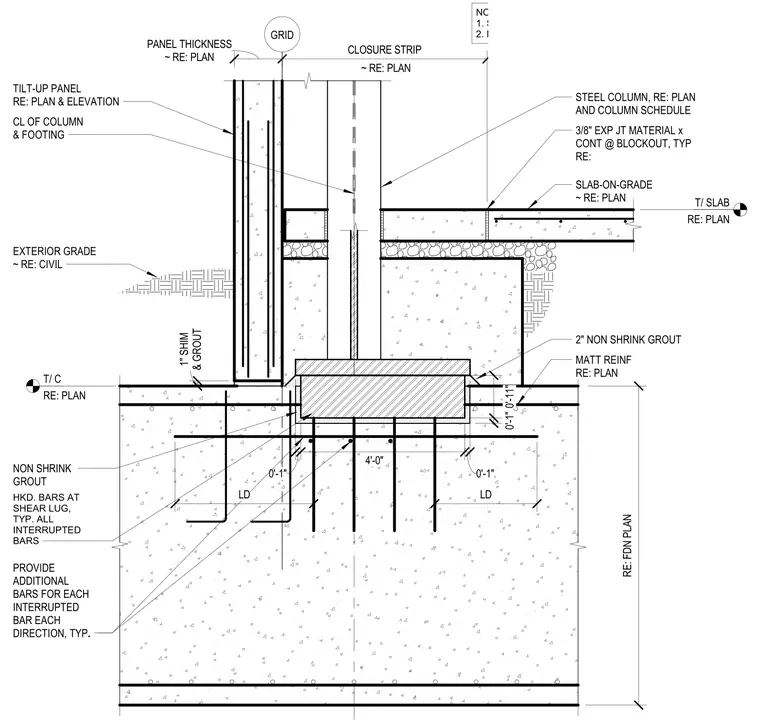

The steel column is supported by a base plate set on two inches of non-shrink grout over a concrete footing. A shear lug is embedded into the footing, with hooked reinforcing bars provided at the lug and additional reinforcing bars installed for each interrupted bar in each direction. The adjacent tilt-up panel is separated from the footing by one inch of shim and grout. A three-eighths-inch continuous expansion joint material is placed at the blockout between the steel column and the slab-on-grade. The slab-on-grade is shown adjacent to the column, with the slab-on-grade omitted in the detail for clarity.
Text on the drawing
GRID SLAB-ON-GRADE ~ RE: PLAN T/ SLAB RE: PLAN EXTERIOR GRADE ~ RE: CIVIL CL OF COLUMN & FOOTING ~ RE: PLAN PANEL THICKNESS ~ RE: PLAN CLOSURE STRIP 3/8" EXP JT MATERIAL x CONT @ BLOCKOUT, TYP RE: STEEL COLUMN, RE: PLAN AND COLUMN SCHEDULE TILT-UP PANEL RE: PLAN & ELEVATION MATT REINF RE: PLAN 2" NON SHRINK GROUT T/ C RE: PLAN HKD. BARS AT SHEAR LUG, TYP. ALL INTERRUPTED BARS 0'-1" 4'-0" 0'-1" RE: FDN PLAN 0'-11" 0'-1" PROVIDE ADDITIONAL BARS FOR EACH INTERRUPTED BAR EACH DIRECTION, TYP . LD LD NON SHRINK GROUT & GROUT 1" SHIM NOTES: 1. SLAB-ON-GRADE NOT SHOWN FOR CLARITY 2. RE: , FOR ADDITIONAL INFORMATION 12/S-60010 9/S-60010 CJP, DCW CJP, DCW S-60010 3/4" = 1'-0" 7 BASE PLATE AT BRACED FRAME
