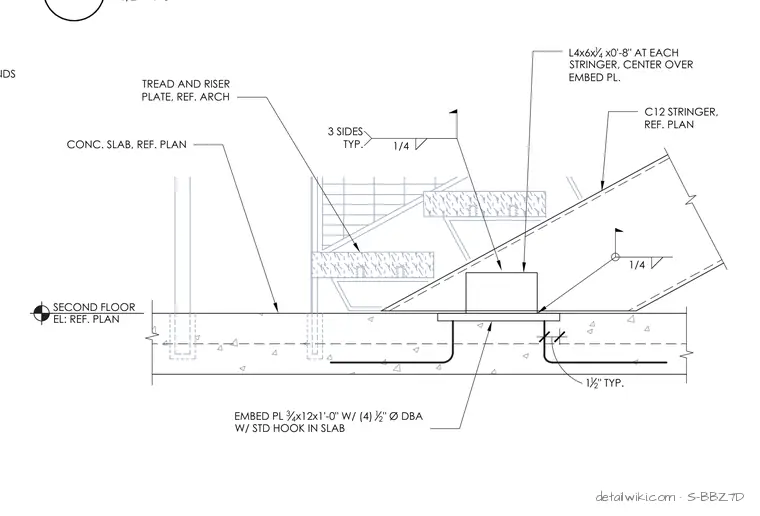

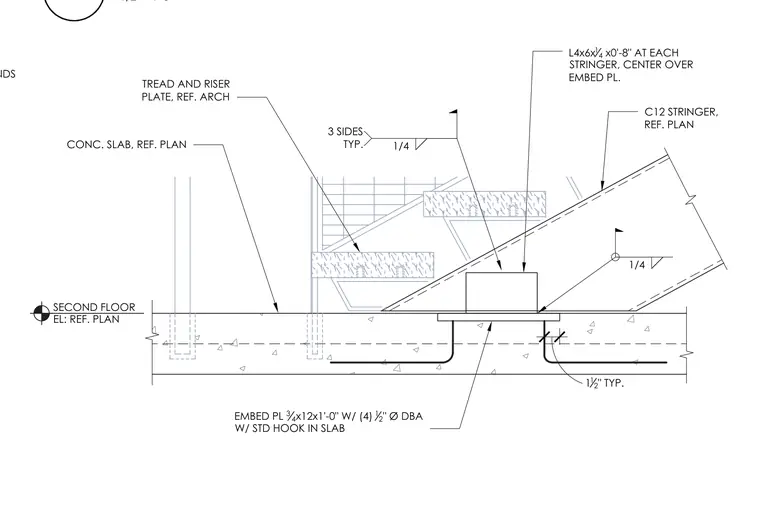

The steel stair stringer consists of a channel member welded to an embed plate cast into the concrete floor slab. A short length of angle is welded to each stringer and centered over the embed plate. The embed plate measures three-quarters of an inch by twelve inches by one foot zero inches and is anchored into the slab concrete with four one-half-inch diameter deformed bar anchors featuring standard hooks. Fillet welds of one-quarter-inch size are applied along three sides as indicated. Tread and riser plates are coordinated per architectural drawings.
1 1/2" = 1'-0" SECOND FLOOR EL: REF. PLAN 1 1 2 " TYP. 3 SIDES TYP. 1/4 1/4 L4x6x 1 4 x0'-8" AT EACH STRINGER, CENTER OVER EMBED PL. C12 STRINGER, REF. PLAN EMBED PL 3 4 x12x1'-0" W/ (4) 1 2 " Ø DBA W/ STD HOOK IN SLAB CONC. SLAB, REF. PLAN TREAD AND RISER PLATE, REF. ARCH " Ø ROD W/ THREADED ENDS
