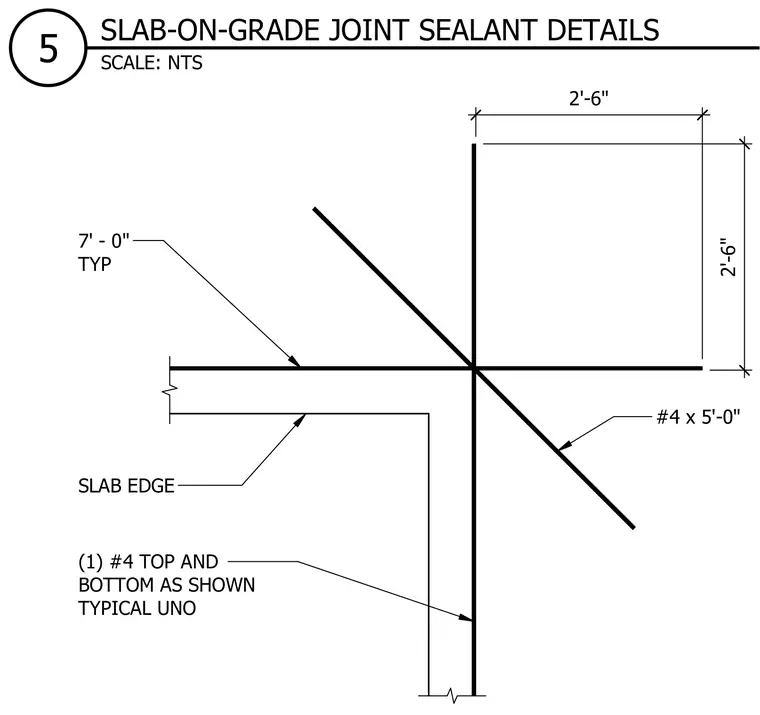

Reinforcing steel layout at a slab-on-grade joint intersection utilizes one number 4 reinforcing bar placed at the top and bottom as shown, typical unless otherwise noted. Additional reinforcing includes a number 4 bar measuring five feet in length placed diagonally at the corner. Spacing and dimensions are indicated at two feet six inches and seven feet typical.
(1) #4 TOP AND BOTTOM AS SHOWN TYPICAL UNO SLAB EDGE #4 x 5'-0" 7' - 0" TYP 2'-6" 2'-6" SCALE: NTS 5 SLAB-ON-GRADE JOINT SEALANT DETAILS
