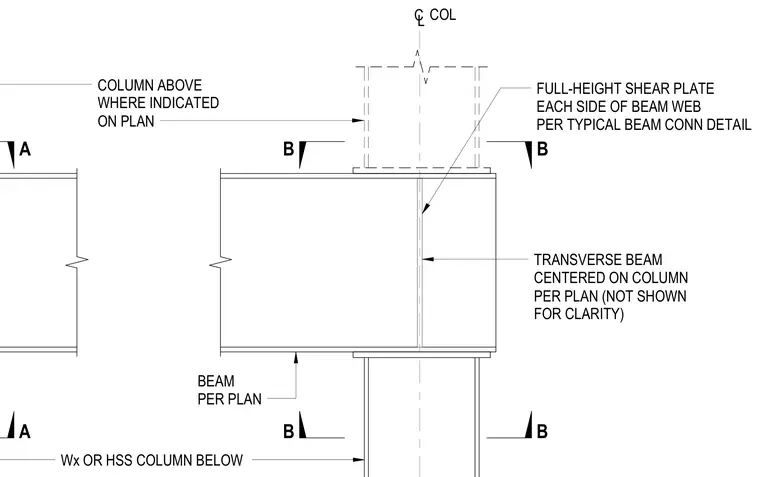

A structural steel beam frames into a Wx or HSS column below and supports a column above where indicated on plan. A full-height shear plate is located on each side of the beam web per typical beam connection detail. A transverse beam is centered on the column per plan and left omitted for clarity.
COLUMN ABOVE WHERE INDICATED ON PLAN Wx OR HSS COLUMN BELOW A A BEAM PER PLAN B B B B CL COL TRANSVERSE BEAM CENTERED ON COLUMN PER PLAN (NOT SHOWN FOR CLARITY) FULL-HEIGHT SHEAR PLATE EACH SIDE OF BEAM WEB PER TYPICAL BEAM CONN DETAIL
