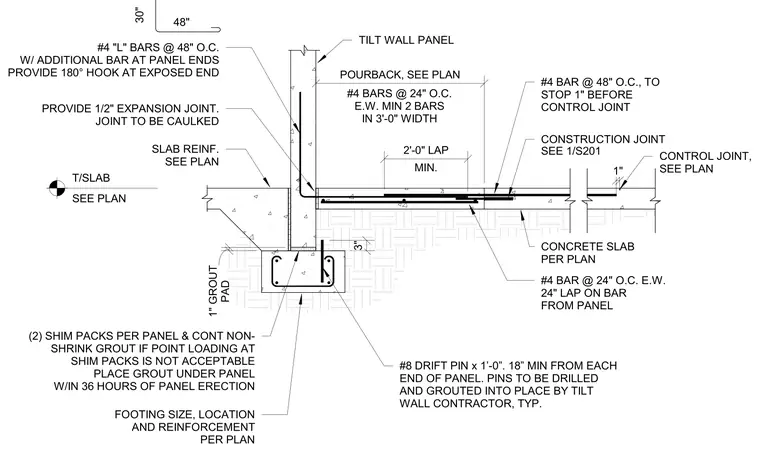

The tilt-up wall panel rests on a one-inch grout pad atop a concrete footing, with two shim packs provided per panel. If point loading at the shim packs is not acceptable, the contractor must place non-shrink grout under the panel within thirty-six hours of erection. The panel is secured to the footing with number eight drift pins, one foot long, installed eighteen inches from each end and grouted into place. A number four L-bar at forty-eight inches on center connects the panel to the slab, with an additional bar at panel ends and a one-hundred-eighty-degree hook at the exposed end. The slab-on-grade includes number four bars at twenty-four inches on center each way, with a two-foot lap splice to the panel reinforcement. A half-inch expansion joint is provided at the panel-to-slab interface, and a one-inch control joint is located in the slab as specified.
Text on the drawing
DETAIL BOOK REF. SHEET: S1.14 SEE 1/S201 POURBACK, SEE PLAN TILT WALL PANEL #4 "L" BARS @ 48" O.C. W/ ADDITIONAL BAR AT PANEL ENDS PROVIDE 180° HOOK AT EXPOSED END MIN. 2'-0" LAP FOOTING SIZE, LOCATION AND REINFORCEMENT PER PLAN #4 BARS @ 24" O.C. E.W. MIN 2 BARS IN 3'-0" WIDTH #4 BAR @ 48" O.C., TO STOP 1" BEFORE CONTROL JOINT CONSTRUCTION JOINT 48" SLAB REINF. SEE PLAN T/SLAB SEE PLAN PROVIDE 1/2" EXPANSION JOINT. JOINT TO BE CAULKED CONCRETE SLAB PER PLAN (2) SHIM PACKS PER PANEL & CONT NON- SHRINK GROUT IF POINT LOADING AT SHIM PACKS IS NOT ACCEPTABLE PLACE GROUT UNDER PANEL W/IN 36 HOURS OF PANEL ERECTION PAD 1" GROUT #4 BAR @ 24" O.C. E.W. 24" LAP ON BAR FROM PANEL #8 DRIFT PIN x 1’-0”. 18” MIN FROM EACH END OF PANEL. PINS TO BE DRILLED AND GROUTED INTO PLACE BY TILT WALL CONTRACTOR, TYP. 3" 1" CONTROL JOINT, SEE PLAN
