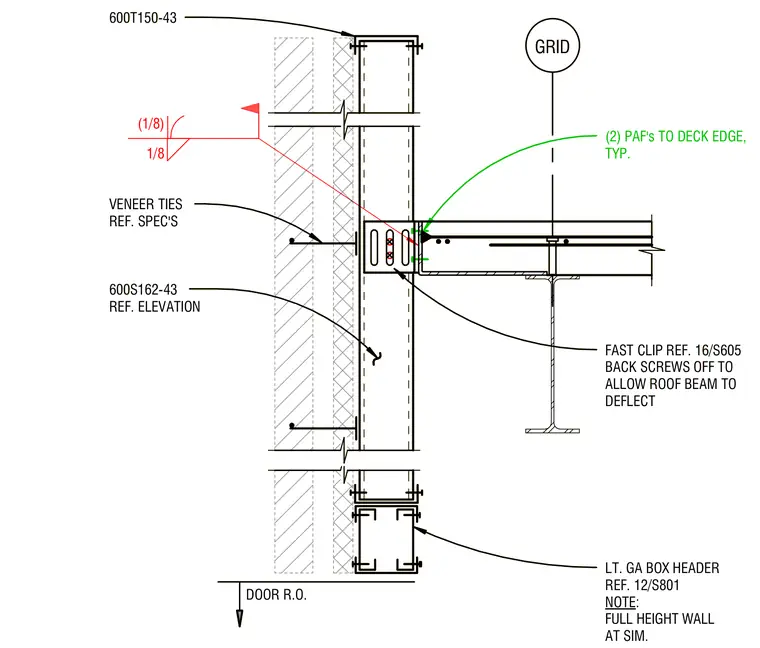

Cold-formed steel stud framing consists of 600S162-43 vertical studs capped with 600T150-43 tracks, supporting masonry veneer attached via veneer ties. A fast clip connects the stud wall back to the roof beam assembly, utilizing two powder-actuated fasteners to the deck edge and back screws left loose or omitted to allow for roof beam deflection. A light gauge box header spans above the door rough opening at the lower wall condition. Structural steel framing includes a wide-flange beam supporting a metal deck.
GRID VENEER TIES REF. SPEC'S 600T150-43 600S162-43 REF. ELEVATION FAST CLIP REF. 16/S605 BACK SCREWS OFF TO ALLOW ROOF BEAM TO DEFLECT DOOR R.O. LT. GA BOX HEADER REF. 12/S801 NOTE: FULL HEIGHT WALL AT SIM. 1/8 (1/8) GRID VENEER TIES REF. SPEC'S 600T150-43 600S162-43 REF. ELEVATION FAST CLIP REF. 16/S605 BACK SCREWS OFF TO ALLOW ROOF BEAM TO DEFLECT DOOR R.O. LT. GA BOX HEADER REF. 12/S801 NOTE: FULL HEIGHT WALL AT SIM. (2) PAF's TO DECK EDGE, TYP.
