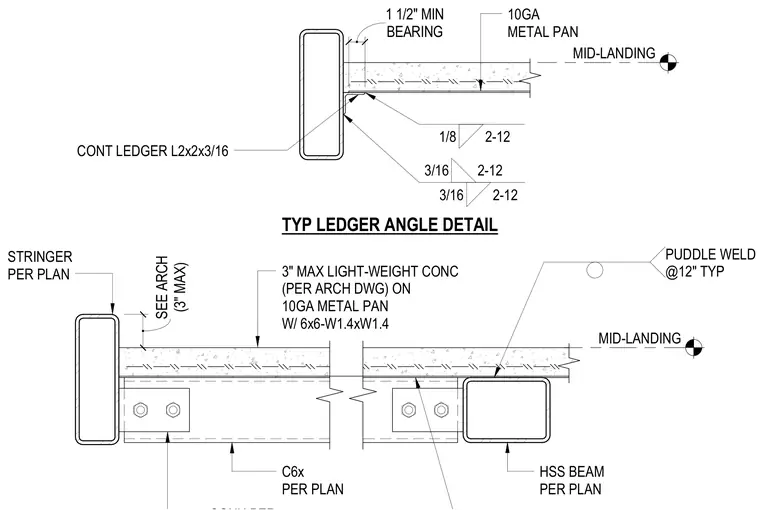

A stair intermediate landing assembly consists of a light-weight concrete fill supported by a ten-gauge metal pan with welded wire reinforcement. The metal pan bears on a continuous L2x2x3/16 ledger angle welded to the support framing. A hollow structural section beam and channel stringer support the stair landing per the structural framing plan. Puddle welds secure the metal pan at twelve inches on center typically.
STRINGER PER PLAN HSS BEAM PER PLAN C6x PER PLAN PUDDLE WELD @12" TYP 3" MAX LIGHT-WEIGHT CONC (PER ARCH DWG) ON 10GA METAL PAN W/ 6x6-W1.4xW1.4 BEARING 1 1/2" MIN 3/16 2-12 3/16 2-12 1/8 2-12 10GA METAL PAN CONT LEDGER L2x2x3/16 TYP LEDGER ANGLE DETAIL MID-LANDING MID-LANDING (3" MAX) SEE ARCH
