S-BAHVD — Provide 15M@200 Side-Face Reinforcement

Structural · S-BAHVD

Provide 15M@200 Side-Face Reinforcement

Units: metric
Sheet: S-MB-5.11
Discipline: Structural

Materials

Concrete Reinforced Concrete

Elements

Foundations / Footings Reinforcing

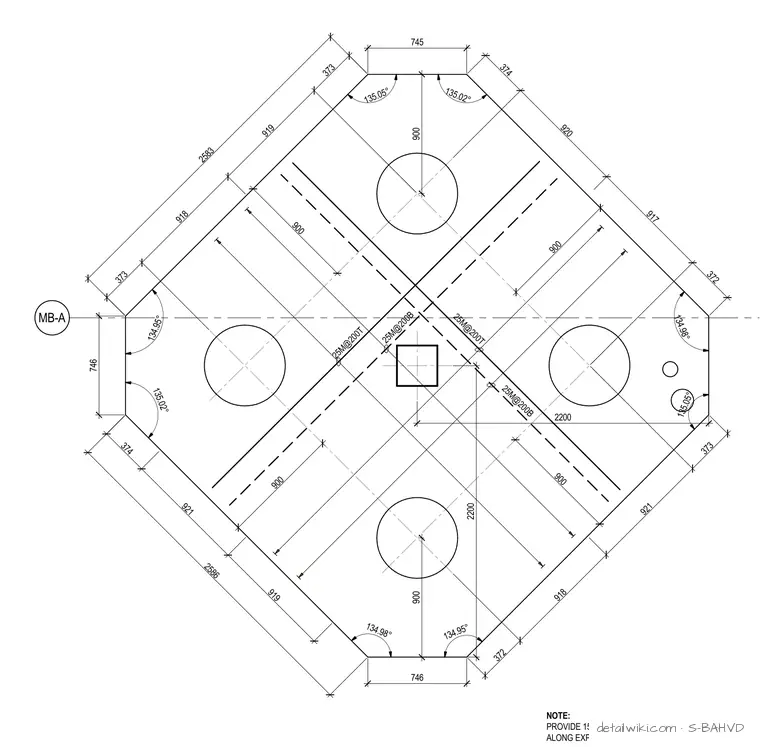

Text on the drawing

25M@200T 25M@200B 25M@200T 25M@200B MB-A 900 900 900 900 135.05° 135.02° 134.98° 134.95° 134.98° 135.05° 373 918 919 373 2583 374 920 917 372 745 134.95° 135.02° 900 900 372 918 921 373 919 921 374 2586 746 746 NOTE: PROVIDE 15M@200 SIDE-FACE REINFORCEMENT ALONG EXPOSED PILE CAP EDGES. 2200 2200

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
