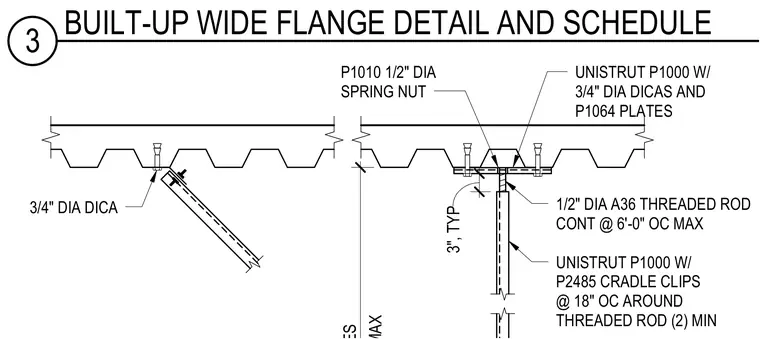

A Unistrut P1000 channel is suspended below a metal deck using half-inch diameter A36 threaded rods spaced continuously at six feet on center maximum. Three-quarter-inch diameter DICA anchors and P1064 plates secure the assembly to the deck. Half-inch diameter P1010 spring nuts fasten the threaded rod to the Unistrut channel. Unistrut P1000 channels are further supported by P2485 cradle clips spaced at eighteen inches on center around the threaded rods.
3", TYP 3/4" DIA DICA P1010 1/2" DIA SPRING NUT UNISTRUT P1000 W/ 3/4" DIA DICAS AND P1064 PLATES 1/2" DIA A36 THREADED ROD CONT @ 6'-0" OC MAX UNISTRUT P1000 W/ P2485 CRADLE CLIPS @ 18" OC AROUND THREADED ROD (2) MIN 3 BUILT-UP WIDE FLANGE DETAIL AND SCHEDULE
