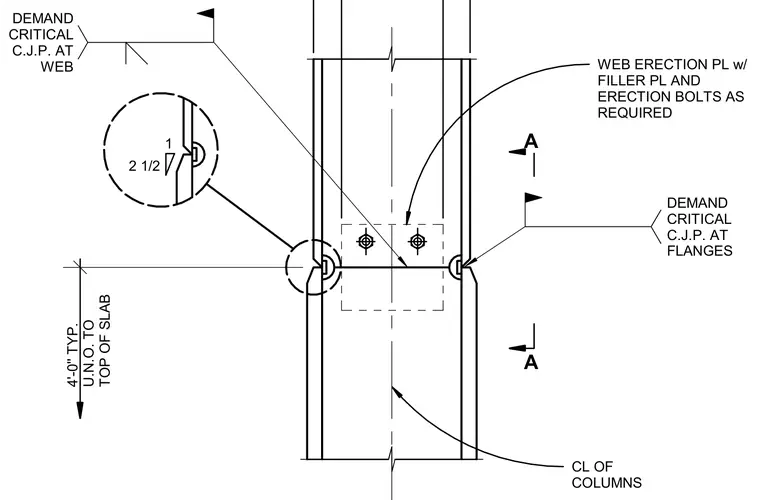

A column splice connection centers on the column centerline, located four feet typical, unless otherwise noted, to the top of the slab. The assembly utilizes a web erection plate with filler plates and erection bolts as required for temporary alignment. The primary connection is made using demand-critical complete joint penetration welds at both the flanges and the web.
4'-0'' TYP. U.N.O. TO TOP OF SLAB A A CL OF COLUMNS 1 2 1/2 WEB ERECTION PL w/ FILLER PL AND ERECTION BOLTS AS REQUIRED DEMAND CRITICAL C.J.P. AT WEB DEMAND CRITICAL C.J.P. AT FLANGES
