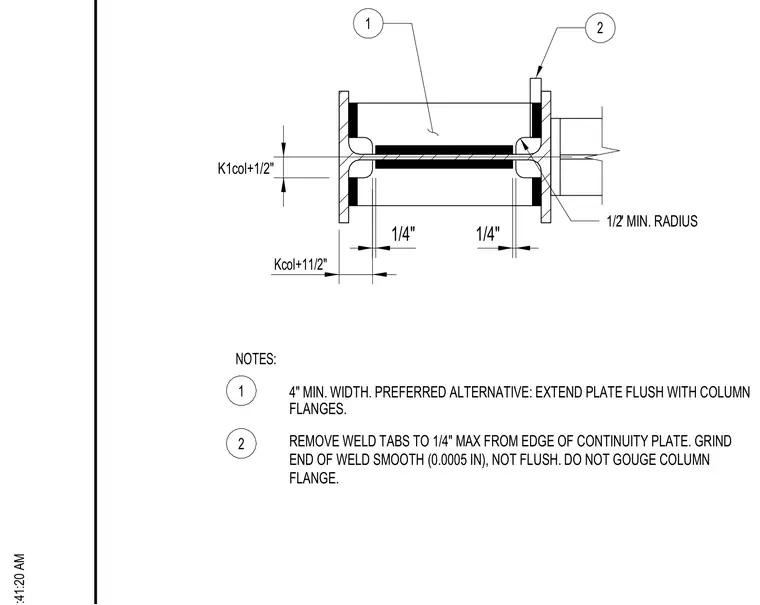

Continuity plates are welded inside a wide-flange steel column. The plates feature a four-inch minimum width with a preferred alternative to extend flush with the column flanges. Weld tabs are removed to one-quarter inch maximum from the edge of the continuity plate, and weld ends are ground smooth without gouging the column flange. Dimensional clearances include one-half inch minimum radius cutouts and specific setbacks based on the column dimension K.
1/4" 1/4" 4" MIN. WIDTH. PREFERRED ALTERNATIVE: EXTEND PLATE FLUSH WITH COLUMN FLANGES. REMOVE WELD TABS TO 1/4" MAX FROM EDGE OF CONTINUITY PLATE. GRIND END OF WELD SMOOTH (0.0005 IN), NOT FLUSH. DO NOT GOUGE COLUMN FLANGE. 1 2 1/2" MIN. RADIUS K1col+1/2" Kcol+11/2" NOTES: 1 2
