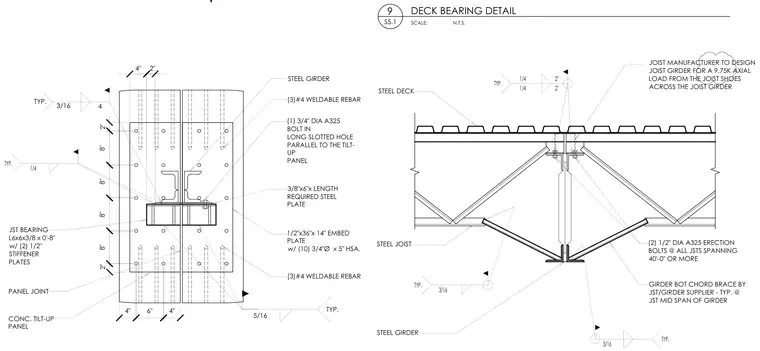

A steel joist girder bearing connection at a concrete tilt-up panel junction incorporates an embedded steel plate measuring 1/2 inch by 36 inches by 14 inches and secured by ten 3/4-inch diameter by 5-inch Heavy Stud Anchors. Three number 4 weldable rebar ties are welded to the embed plate for concrete anchorage. A structural steel girder with a 3/8-inch by 6-inch steel plate connects to the panel assembly using one 3/4-inch diameter ASTM A325 bolt placed in a long slotted hole parallel to the tilt-up panel. Steel joists bear on an L6x6x3/8 angle measuring 8 inches long with two 1/2-inch stiffener plates. Two 1/2-inch diameter ASTM A325 erection bolts are provided at all joists spanning 40 feet or more, and a bottom chord brace is supplied by the joist or girder supplier at the mid-span. Steel deck spans across the top chords with typical fillet welds as specified.
SCALE: 9 S5.1 DECK BEARING DETAIL N.T.S. TYP. 3/16 STEEL GIRDER (2) 1/2" DIA A325 ERECTION BOLTS @ ALL JSTS SPANNING 40'-0" OR MORE GIRDER BOT CHORD BRACE BY JST/GIRDER SUPPLIER - TYP. @ JST MID SPAN OF GIRDER TYP. 3/16 STEEL JOIST TYP. 1/4 1/4 2" 2" STEEL DECK JOIST MANUFACTURER TO DESIGN JOIST GIRDER FOR A 9.75K AXIAL LOAD FROM THE JOIST SHOES ACROSS THE JOIST GIRDER (1) 3/4" DIA A325 BOLT IN LONG SLOTTED HOLE PARALLEL TO THE TILT- UP PANEL CONC. TILT-UP PANEL JST BEARING L6x6x3/8 x 0'-8" w/ (2) 1/2" STIFFENER PLATES PANEL JOINT 1/2"x36"x 14" EMBED PLATE w/ (10) 3/4"Ø x 5" HSA. 3/8"x6"x LENGTH REQUIRED STEEL PLATE TYP. 5/16 TYP. 3/16 4 STEEL GIRDER TYP. 1/4 4" 2" 2" 8" 8" 8" 8" 2" (3)#4 WELDABLE REBAR (3)#4 WELDABLE REBAR 4" 6" 4"
